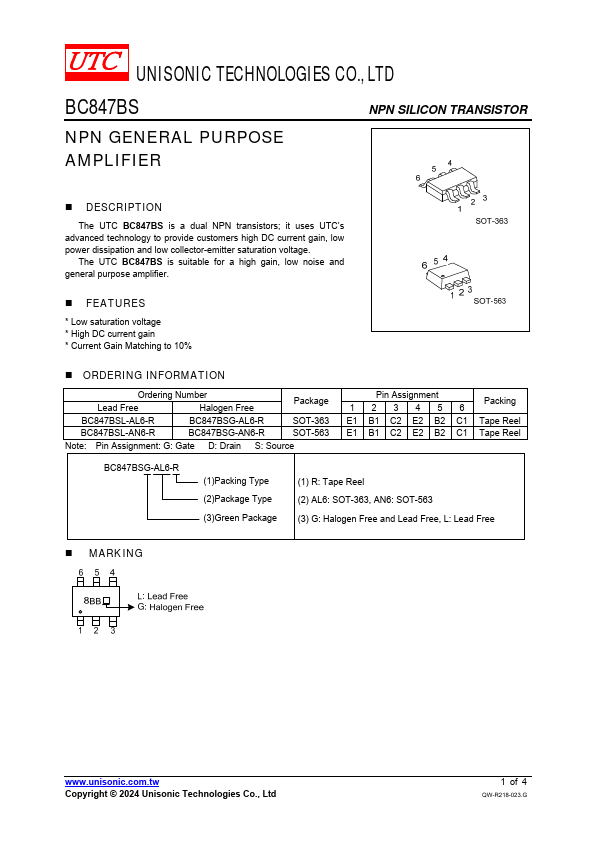

Unisonic Technologies BC847BS
BC847BS is a dual NPN transistors; it uses UTC’s advanced technology to provide customers high DC current gain, low power dissipation and low collector-emitter saturation voltage. The UTC BC847BS is suitable for a high gain, low noise and general purpose amplifier.| Part No. | BC847BS |
|---|---|
| Datasheet | BC847BS Download |
| Manufacturer |  Unisonic Technologies |
| Description | NPN GENERAL PURPOSE AMPLIFIER |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
* Low saturation voltage * High DC current gain * Current Gain Matching to 10%● ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package BC847BSL-AL6-R BC847BSG-AL6-R SOT-363 BC847BSL-AN6-R BC847BSG-AN6-R SOT-563 Note: Pin Assignment: G: Gate D: Drain S: Source Pin Assignment 123456 Packing E1 B1 C2 E2 B2 C1 Tape Reel E1 B1 C2 E2 B2 C1 Tape Reel BC847BSG-AL6-R (1)Packing Type (2)Package Type (3)Green Package (1) R: Tape Reel (2) AL6: SOT-363, AN6: SOT-563 (3) G: Halogen Free and Lead Free, L: Lead Free
● MARKING Copyright © 2024 Unisonic Technologies Co., Ltd 1 of 4 QW-R218-023.G BC847BS NPN SILICON TRANSISTOR
●
ABSOLUTE MAXIMUM RATINGS
(TA=25°C, unless otherwise noted) PARAMETER SYMBOL RATINGS UNIT Collector-Base Voltage VCES 50 V Collector-Emitter Voltage VCEO 45 V Emitter-Base Voltage VEBO 6.0 V Continuous Collector Current IC 100 mA Power Dissipation SOT-363 SOT-563 PD 200 mW 150 mW Junction Temperature TJ -55 ~ +150 °C Storage Temperature Range TSTG -55 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
