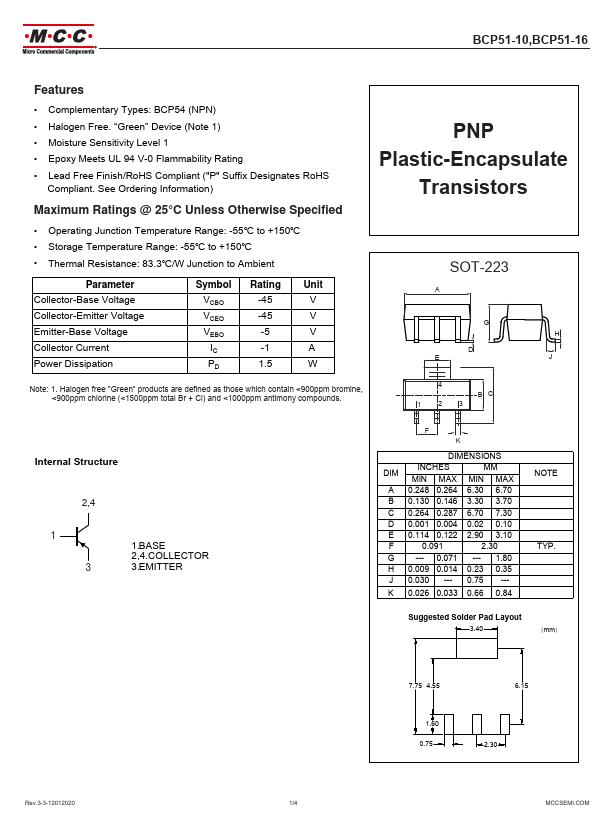

BCP51-16
Features
- plementary Types: BCP54 (NPN)
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 83.3℃/W Junction to Ambient
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation
Symbol VCBO VCEO VEBO IC PD
Rating -45 -45 -5 -1 1.5
Unit V V V A W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
PNP Plastic-Encapsulate
Transistors
SOT-223
4 BC
Internal Structure
2,4 1
1.BASE 2,4.COLLECTOR 3.EMITTER
DIMENSIONS
INCHES
MIN MAX MIN MAX
A 0.248 0.264...
