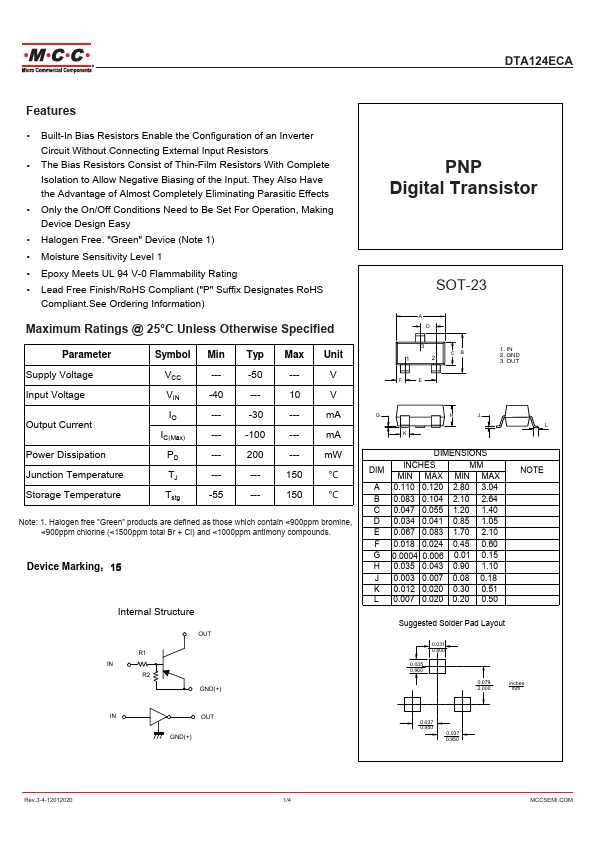

Micro Commercial Components DTA124ECA
PNP Digital Transistors
| Part No. | DTA124ECA |
|---|---|
| Datasheet | DTA124ECA Download |
| Manufacturer |  Micro Commercial Components |
| Description | PNP Digital Transistors |
| Buy | Stock & Price |
FEATURES
● Built-In Bias Resistors Enable the Configuration of an Inverter Circuit Without Connecting External Input Resistors● The Bias Resistors Consist of Thin-Film Resistors With Complete Isolation to Allow Negative Biasing of the Input. They Also Have the Advantage of Almost Completely Eliminating Parasitic Effects
● Only the On/Off Conditions Need to Be Set For Operation, Making Device Design Easy
● Halogen Free. "Green" Device (Note 1)
● Moisture Sensitivity Level 1
● Epoxy Meets UL 94 V-0 Flammability Rating
● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant.See Ordering Information)
MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified Parameter Supply Voltage Input Voltage Output Current Power Dissipation Junction Temperature Storage Temperature Symbol Min VCC --- VIN -40 IO --- IC(Max) --- PD --- TJ --- Tstg -55 Typ -50 ---30 -100 200 ----- Max --10 ------150 150 Unit V V mA mA mW ℃ ℃ Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
