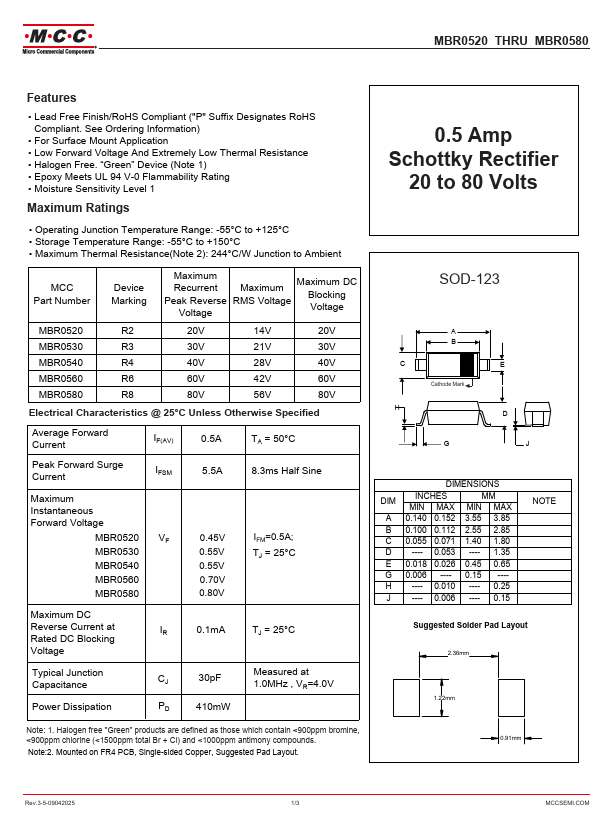

MBR0580
MBR0580 is Schottky Rectifier manufactured by Micro Commercial Components.
- Part of the MBR0520 comparator family.
- Part of the MBR0520 comparator family.
Features
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
- For Surface Mount Application
- Low Forward Voltage And Extremely Low Thermal Resistance
- Halogen Free. “Green” Device (Note 1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Maximum Thermal Resistance(Note 2): 244°C/W Junction to Ambient
MCC Part Number
Device Marking
Maximum Recurrent Peak Reverse
Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
MBR0520
R2
MBR0530
R3
MBR0540
R4
MBR0560
R6
R8
20V
14V
20V
30V
21V
30V
40V
28V
40V
60V
42V
60V
80V
56V...
