MBR0580
MBR0580 is SOD-123 Plastic-Encapsulate Diodes manufactured by Slkor Micro Semicon.
- Part of the MBR0520 comparator family.
- Part of the MBR0520 comparator family.

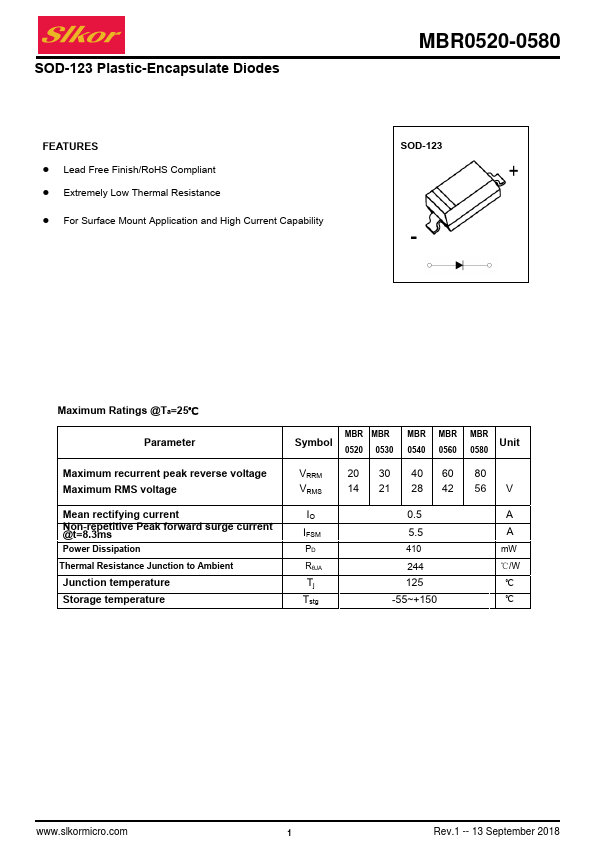

FEATURES z Lead Free Finish/Ro HS pliant z Extremely Low Thermal Resistance z For Surface Mount Application and High Current Capability
MBR0520-0580
SOD-123
Maximum Ratings @Ta=25℃
Parameter
Maximum recurrent peak reverse voltage Maximum RMS voltage
Mean rectifying current @Not=n8-r.e3pmestitive Peak forward surge current
Power Dissipation Thermal Resistance Junction to Ambient
Junction temperature Storage temperature
MBR MBR MBR MBR MBR
Symbol
Unit
VRRM VRMS
IO IFSM
PD RθJA
Tj Tstg
20 30 40 60 80
14 21 28 42 56 V
410 m W
244 125 -55~+150
℃/W ℃ ℃
.slkormicro.
Rev.1 -- 13 September 2018
MBR0520-0580

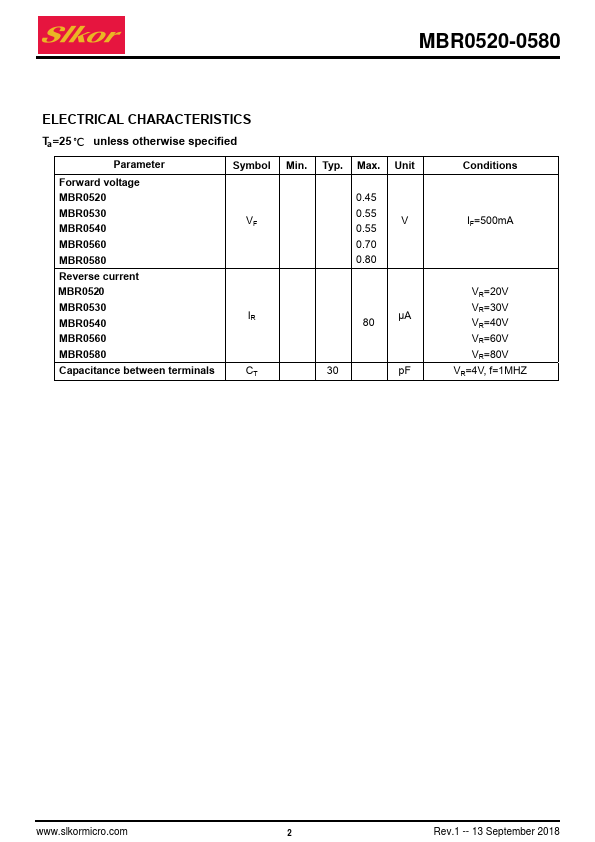

ELECTRICAL CHARACTERISTICS
Ta=25 ℃ unless otherwise specified
Parameter
Forward voltage MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 Reverse current MBR0520 MBR0530 MBR0540 MBR0560 MBR0580 Capacitance between terminals
Symbol Min. Typ. Max. Unit
V 0.55

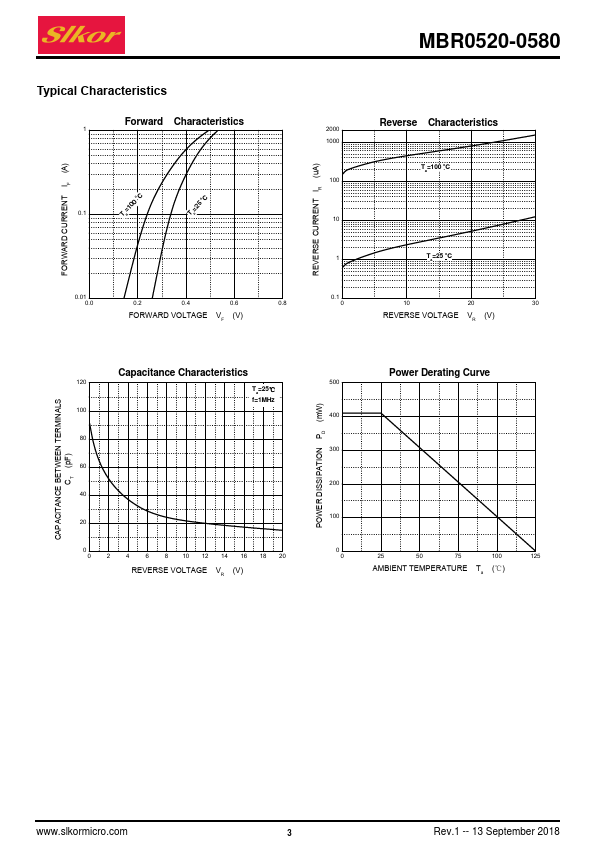

μA...
