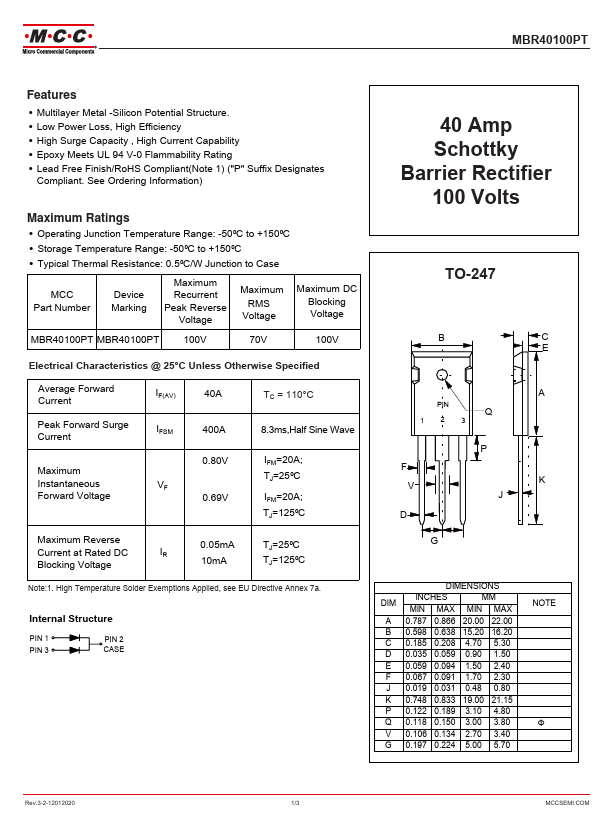

MBR40100PT
MBR40100PT is 100V 40A Schottky Barrier Rectifier manufactured by Micro Commercial Components.
Features
- Multilayer Metal -Silicon Potential Structure.
- Low Power Loss, High Efficiency
- High Surge Capacity , High Current Capability
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant(Note 1) ("P" Suffix Designates pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range: -50⁰C to +150⁰C
- Storage Temperature Range: -50⁰C to +150⁰C
- Typical Thermal Resistance: 0.5⁰C/W Junction to Case
MCC Part Number
Device Marking
Maximum Recurrent Peak Reverse
Voltage
Maximum
RMS Voltage
Maximum DC Blocking Voltage
MBR40100PT MBR40100PT 100V
70V
100V

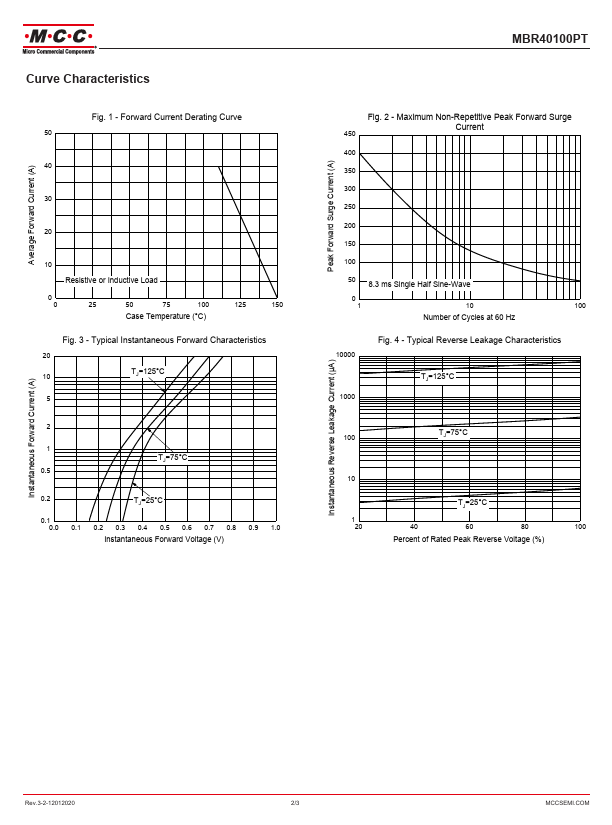

Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward Current
IF(AV)
40A
TC = 110°C
Peak Forward Surge Current
IFSM
400A
8.3ms,Half Sine Wave
Maximum Instantaneous Forward Voltage
0.80V
IFM=20A;
TJ=25⁰C VF
0.69V
IFM=20A;
TJ=125⁰C
Maximum Reverse Current at Rated DC Blocking Voltage
0.05m A 10m A
TJ=25⁰C...
