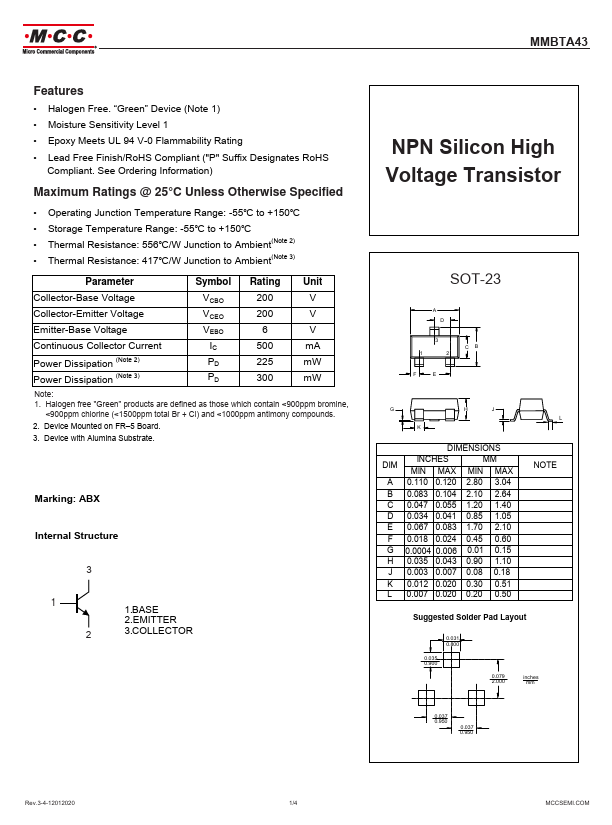

MMBTA43
MMBTA43 is NPN Silicon High Voltage Transistor manufactured by Micro Commercial Components.
Features
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)

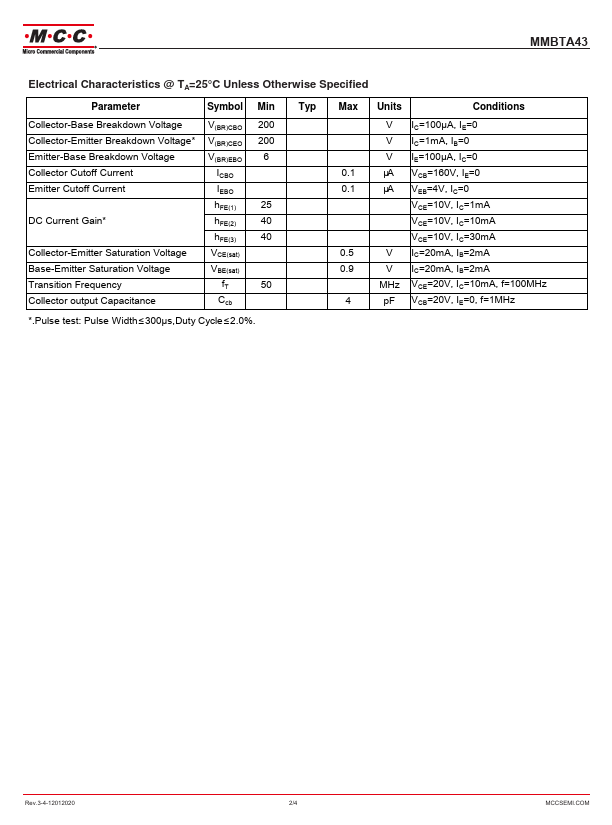

Maximum Ratings @ 25°C Unless Otherwise Specified
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 556℃/W Junction to Ambient(Note 2)
- Thermal Resistance: 417℃/W Junction to Ambient(Note 3)
Parameter
Symbol Rating Unit
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation (Note 2) Power Dissipation (Note 3)
VCBO VCEO VEBO
IC PD PD
500 m A
225 m W
300 m W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine,
<900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
2. Device Mounted on FR- 5 Board.
3. Device with Alumina Substrate.
Marking: ABX
Internal Structure
1 2
1.BASE 2.EMITTER 3.COLLECTOR
NPN Silicon High Voltage Transistor
SOT-23
DIMENSIONS
INCHES MIN MAX
MM MIN MAX
A 0.110 0.120 2.80 3.04
B 0.083 0.104 2.10 2.64
C 0.047 0.055 1.20 1.40
D 0.034 0.041 0.85 1.05
E 0.067 0.083 1.70...
