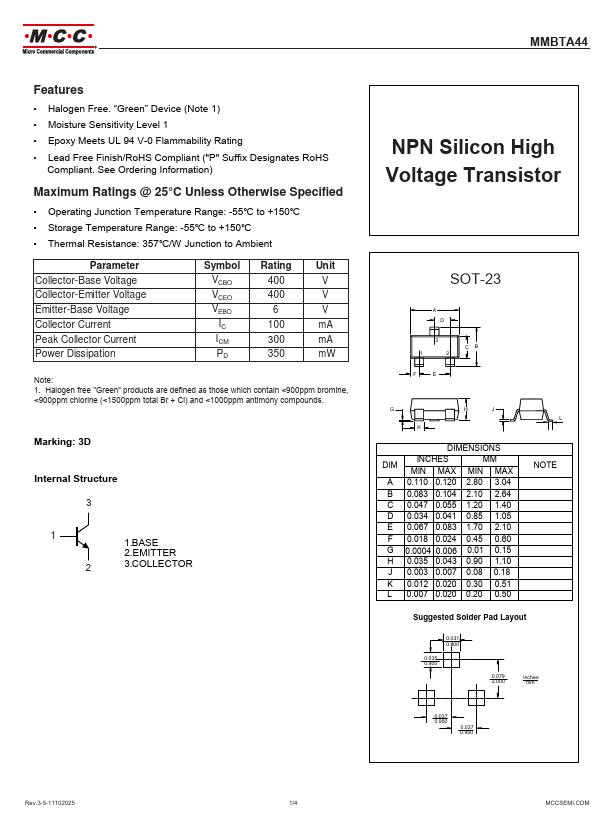

MMBTA44 - NPN Silicon High Voltage Transistor

Key Features

  • Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Surface Mount SOT-23 Package 150oC Junction Temperature Mechanical Data Power dissipation: 0.35W Marking: 3D/A44 Maximum Ratings Symbol VCEO VCBO VEBO IC PC TJ TSTG Rating Rating Collector-Emitter Voltage 400 Collector-Base Voltage 500 Emitter-Base Voltage 6-- Collector Current 300 Collector power dissipation 350 J.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBTA44 Silicon NPN transistor BLUE ROCKET ELECTRONICS
MMBTA44 NPN Transistors Kexin
MMBTA44 EPITAXIAL PLANAR NPN TRANSISTOR KEC
MMBTA44 NPN Silicon Epitaxial Transistor SeCoS
MMBTA44 NPN Silicon Epitaxial Planar Transistor SEMTECH

Other Datasheets by Micro Commercial Components

Part Number Description
MMBTA05 NPN Small Signal General Purpose Amplifier Transistors
MMBTA06 NPN Small Signal General Purpose Amplifier Transistors
MMBTA28 NPN Surface Mount Darlington Transistor
MMBTA55 PNP General Purpose Amplifier
MMBTA56 PNP General Purpose Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Features Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Surface Mount SOT-23 Package 150oC Junction Temperature Mechanical Data Power dissipation: 0.
