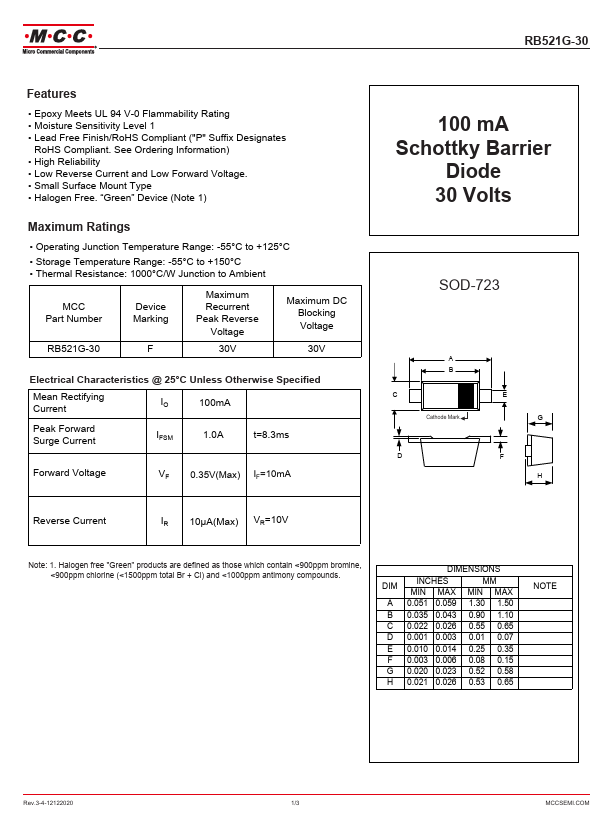

RB521G-30
RB521G-30 is Schottky Barrier Diode manufactured by Micro Commercial Components.
Features
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1
- Lead Free Finish/RoHS pliant ("P" Suffix Designates
RoHS pliant. See Ordering Information)
- High Reliability
- Low Reverse Current and Low Forward Voltage.
- Small Surface Mount Type
- Halogen Free. “Green” Device (Note 1)
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 1000°C/W Junction to Ambient
MCC Part Number
Device Marking
Maximum Recurrent Peak Reverse
Voltage
30V
Maximum DC Blocking Voltage
30V
Electrical Characteristics @ 25°C Unless Otherwise Specified
Mean Rectifying...
