Micro Commercial Components RB751S-40L2
40V 30mA Schottky Rectifier
| Part No. | RB751S-40L2 |
|---|---|
| Datasheet | RB751S-40L2 Download |
| Manufacturer |  Micro Commercial Components |
| Description | 40V 30mA Schottky Rectifier |
| Buy | Stock & Price |

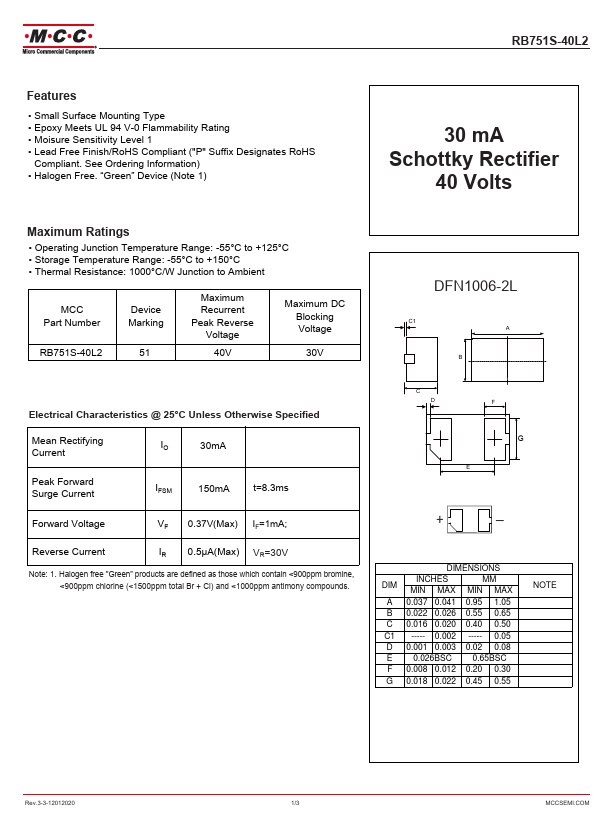

FEATURES
● Small Surface Mounting Type● Epoxy Meets UL 94 V-0 Flammability Rating
● Moisure Sensitivity Level 1
● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)
● Halogen Free. “Green” Device (Note 1) 30 mA Schottky Rectifier 40 Volts
MAXIMUM RATINGS
● Operating Junction Temperature Range: -55°C to +125°C● Storage Temperature Range: -55°C to +150°C
● Thermal Resistance: 1000°C/W Junction to Ambient MCC Part Number RB751S-40L2 Device Marking 51 Maximum Recurrent Peak Reverse Voltage 40V Maximum DC Blocking Voltage 30V DFN1006-2L C1 A B -
ELECTRICAL CHARACTERISTICS
@ 25°C Unless Otherwise Specified Mean Rectifying Current IO 30mA Peak Forward Surge Current IFSM 150mA t=8.3ms Forward Voltage VF 0.37V(Max) IF=1mA; Reverse Current IR 0.5µA(Max) VR=30V Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. C D F G E + - DIMENSIONS...
