Micro Commercial Components RB751S-40LP
40V 30mA Schottky Rectifier
| Part No. | RB751S-40LP |
|---|---|
| Datasheet | RB751S-40LP Download |
| Manufacturer |  Micro Commercial Components |
| Description | 40V 30mA Schottky Rectifier |
| Buy | Stock & Price |

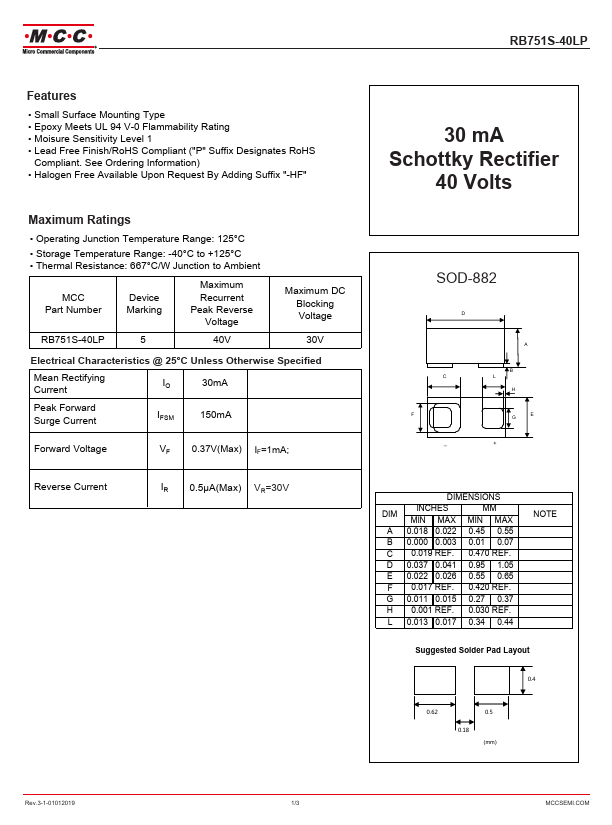

FEATURES
● Small Surface Mounting Type● Epoxy Meets UL 94 V-0 Flammability Rating
● Moisure Sensitivity Level 1

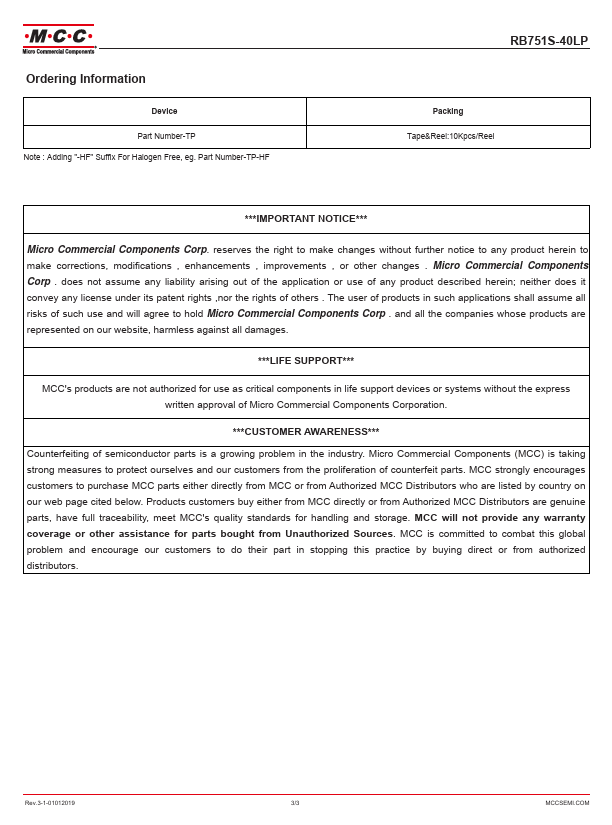

● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)
● Halogen Free Available Upon Request By Adding Suffix "-HF"
MAXIMUM RATINGS
● Operating Junction Temperature Range: 125°C● Storage Temperature Range: -40°C to +125°C
● Thermal Resistance: 667°C/W Junction to Ambient MCC Part Number Device Marking RB751S-40LP 5 Maximum Recurrent Peak Reverse Voltage 40V Maximum DC Blocking Voltage 30V
ELECTRICAL CHARACTERISTICS
@ 25°C Unless Otherwise Specified Mean Rectifying Current IO 30mA Peak Forward Surge Current IFSM 150mA Forward Voltage VF 0.37V(Max) IF=1mA; Reverse Current IR 0.5µA(Max) VR=30V 30 mA Schottky Rectifier 40 Volts SOD-882 D C F _ A B L H G E + DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.018 0.022 0.45 0.55 B 0.000 0.003 0.01 0.07 C 0.019 REF. 0.470 REF. D 0.037 0.041 0.95 1.05 E 0.022 0.026 0.55 0.65 F 0.017 REF. 0.420 REF.
