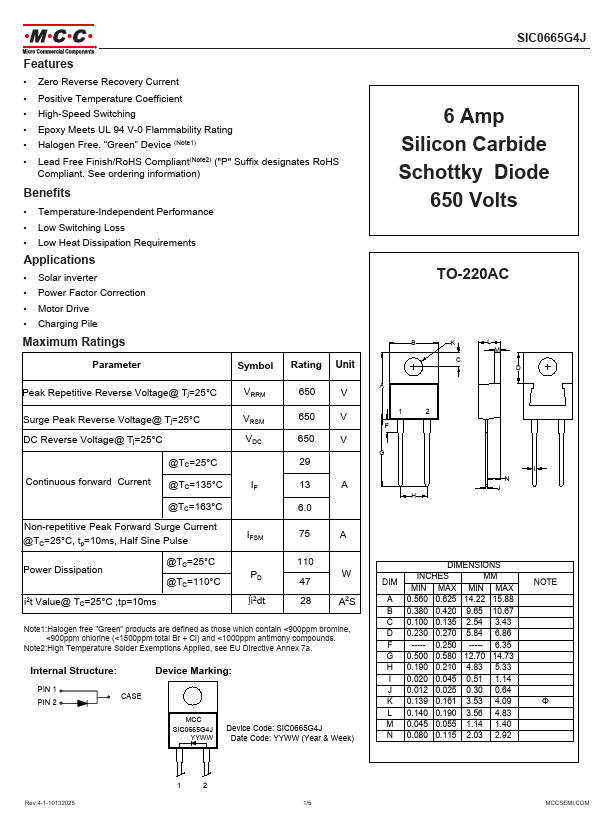

Datasheet Summary
Features
- Zero Reverse Recovery Current
- Positive Temperature Coefficient
- High-Speed Switching
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free. “Green” Device (Note1)
- Lead Free Finish/RoHS pliant(Note2) ("P" Suffix designates RoHS pliant. See ordering information)
Benefits
- Temperature-Independent Performance
- Low Switching Loss
- Low Heat Dissipation Requirements
Applications
- Solar inverter
- Power Factor Correction
- Motor Drive
- Charging Pile
Maximum Ratings
Parameter
Symbol Rating Unit
Peak Repetitive Reverse Voltage@ Tj=25°C
Surge Peak Reverse Voltage@ Tj=25°C DC Reverse Voltage@ Tj=25°C
Continuous forward Current
@TC=25°C @TC=135°C
@TC=163°C
Non-repe...
