SM6S10AHE3 - 4600 Watt TVS

Description

Simplified outline Graphic symbol Uni-directional MCC XXXX YYWW Cathode （1） Anode （2） Bi-directional MCC XXXX YYWW （1） XXXX = Marking code YYWW = Date Code Rev.4-1-06262024 （2） 1/4 DO-218AB A B E D C F G H J LK DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.590 0.630 15.00 1

Features

  • AEC-Q101 Qualified.
  • Low Leakage Current.
  • Excellent Clamping Capability.
  • Bi-directional Polarity.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant. See Ordering Information).
  • ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact) 4600 Watt TVS 10 to 43 Volts Maximum Ratings Parameter Peak Pulse Power Surge Current with a 10/1.

📥 Download Datasheet

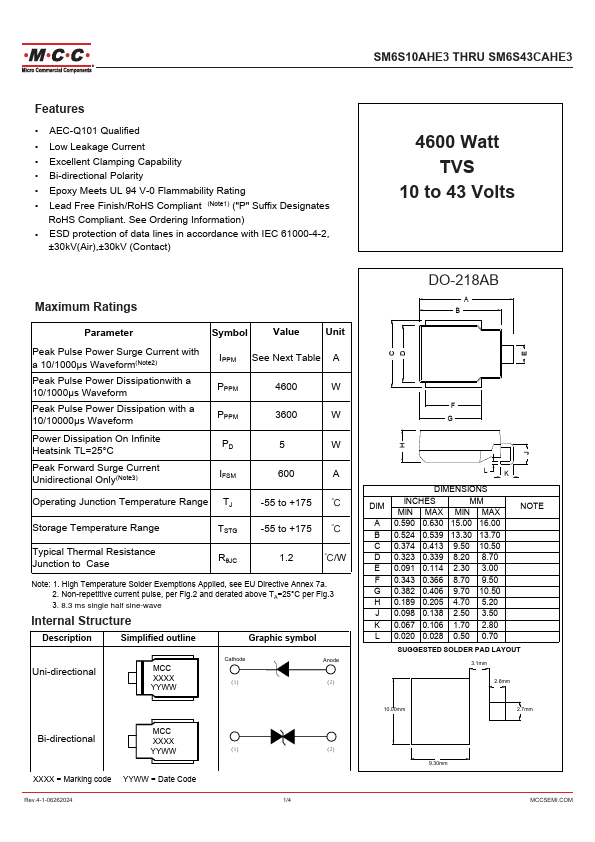

Datasheet preview – SM6S10AHE3

📁 Similar Datasheet

  • SM6S10A - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S10A - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S10A - TVS (Vishay)
  • SM6S10AT - Transient Voltage Suppressors (Vishay)
  • SM6S10CA - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S10CA - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S11A - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S11A - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S11A - TVS (Vishay)
  • SM6S11AT - Transient Voltage Suppressors (Vishay)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
SM6S10AHE3 THRU SM6S43CAHE3 Features • AEC-Q101 Qualified • Low Leakage Current • Excellent Clamping Capability • Bi-directional Polarity • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant.
