RDDW60G-12 - DC-DC Converter

Download the RDDW60G-12 datasheet PDF (RDDW60F-12 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dc-dc converter.

Description

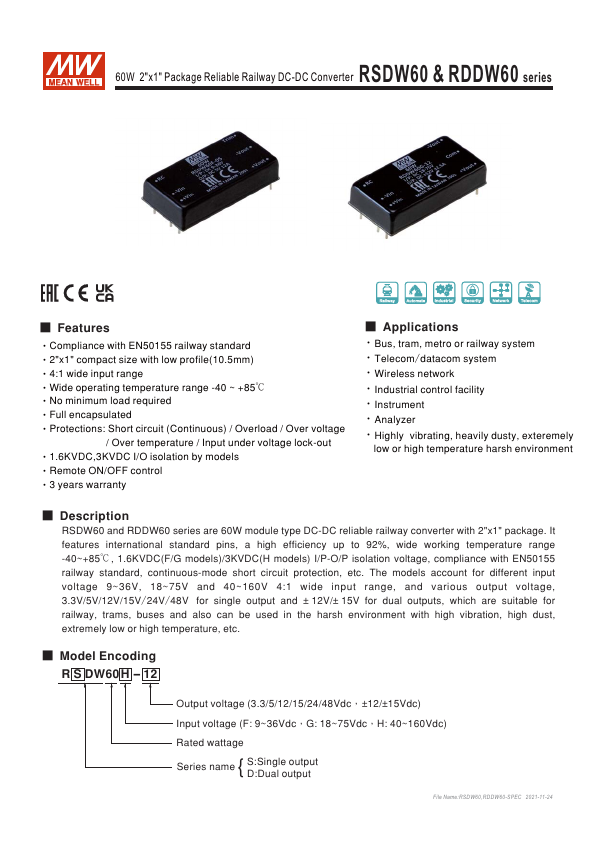

RSDW60 and RDDW60 series are 60W module type DC-DC reliable railway converter with 2"x1" package.

Features

  • s Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.6KVDC,3KVDC I/O isolation by models Remote ON/OFF control 3 years warranty.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RDDW60F-12-MEANWELL.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by MEAN WELL

Full PDF Text Transcription

Click to expand full text

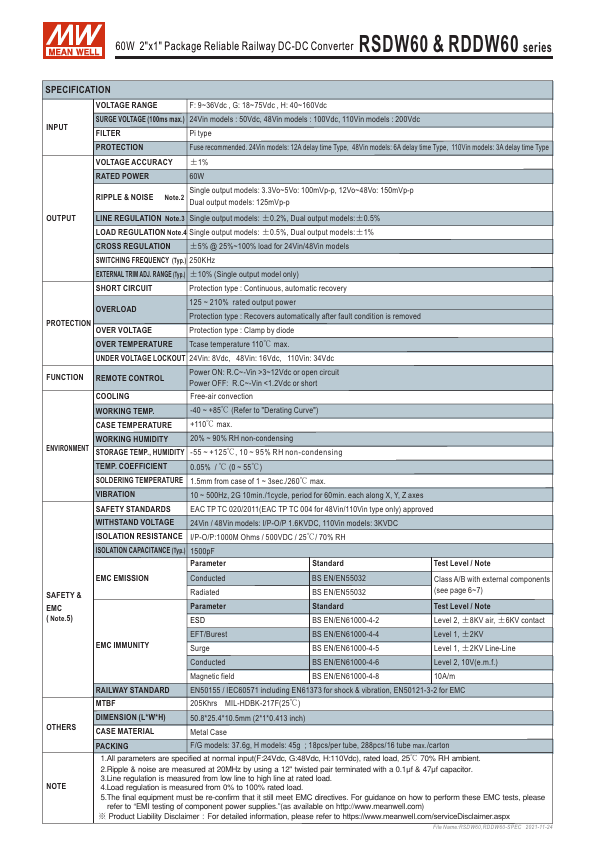

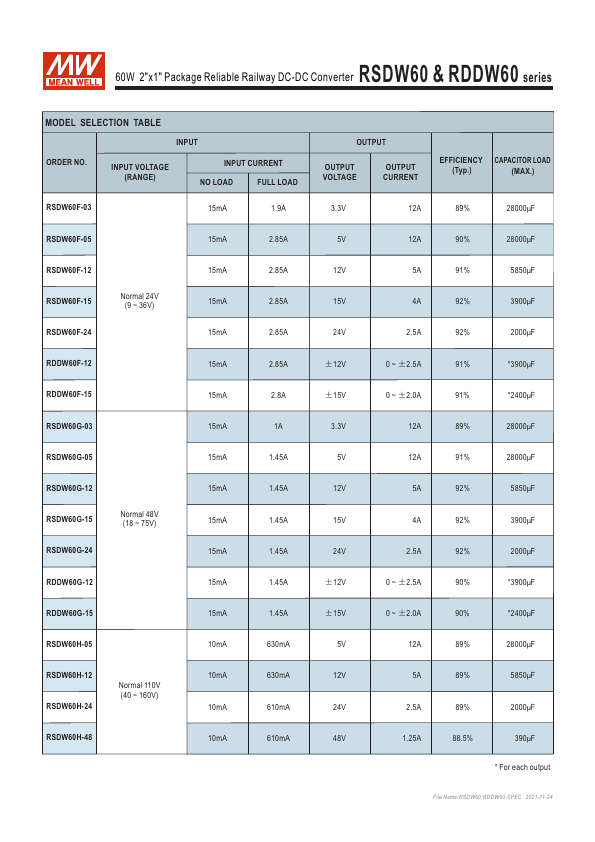

RSDW60 & RDDW60 60W 2"x1" Package Reliable Railway DC-DC Converter series ■ Features Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.
