RDDW60G-15 - DC-DC Converter

Download the RDDW60G-15 datasheet PDF. This datasheet also covers the RDDW60F-12 variant, as both devices belong to the same dc-dc converter family and are provided as variant models within a single manufacturer datasheet.

General Description

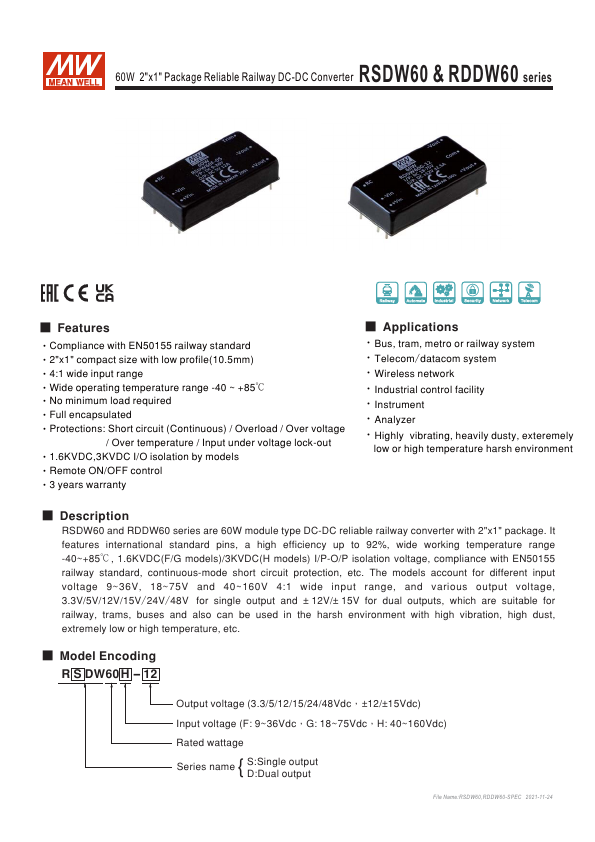

RSDW60 and RDDW60 series are 60W module type DC-DC reliable railway converter with 2"x1" package.

Key Features

  • s Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.6KVDC,3KVDC I/O isolation by models Remote ON/OFF control 3 years warranty.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RDDW60F-12-MEANWELL.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
RDD050N20 10V Drive Nch MOSFET Rohm
RDD08110D05 DC-DC Converter XP POWER
RDD08110D12 DC-DC Converter XP POWER
RDD08110D15 DC-DC Converter XP POWER
RDD08110S05 DC-DC Converter XP POWER

Other Datasheets by MEAN WELL

Part Number Description
RDDW60G-12 DC-DC Converter
RDDW60F-12 DC-DC Converter
RDDW60F-15 DC-DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

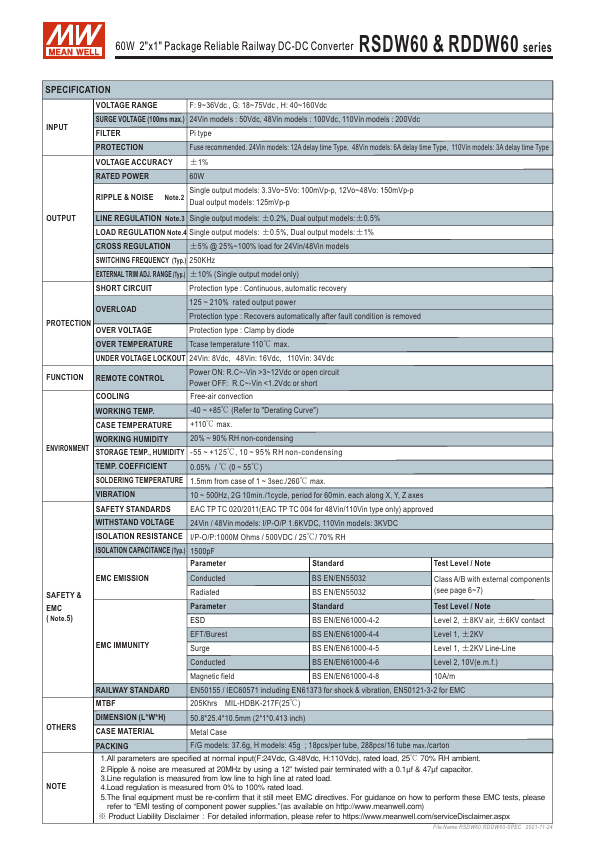

RSDW60 & RDDW60 60W 2"x1" Package Reliable Railway DC-DC Converter series ■ Features Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.
