RSDW60F-03 - DC-DC Converter

General Description

RSDW60 and RDDW60 series are 60W module type DC-DC reliable railway converter with 2"x1" package.

Key Features

  • s Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.6KVDC,3KVDC I/O isolation by models Remote ON/OFF control 3 years warranty.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RSD-0505DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-0509DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-051.8DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-0512DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-0515DH ECONOLINE - DC/DC - CONVERTER Recom International Power

Other Datasheets by MEAN WELL

Part Number Description
RSDW60F-05 DC-DC Converter
RSDW60F-12 DC-DC Converter
RSDW60F-15 DC-DC Converter
RSDW60F-24 DC-DC Converter
RSDW60G-03 DC-DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

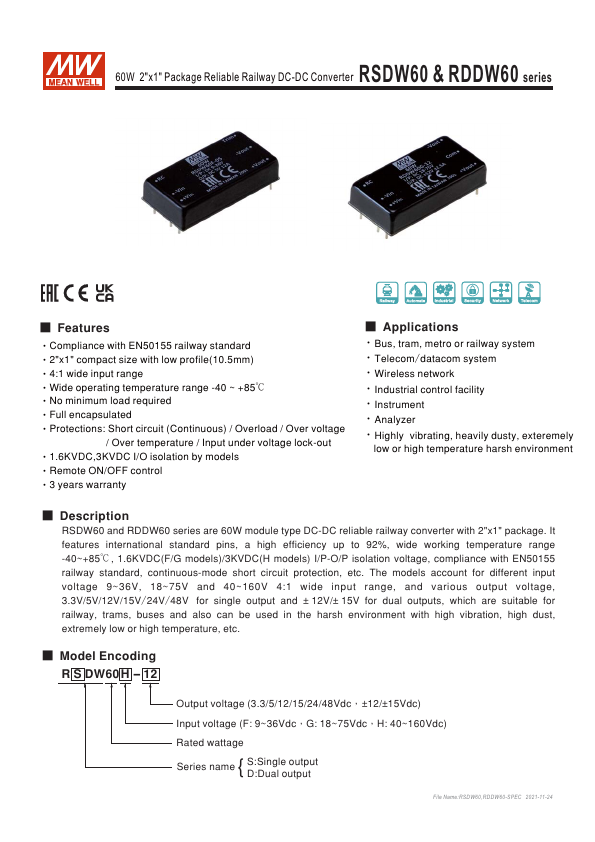

RSDW60 & RDDW60 60W 2"x1" Package Reliable Railway DC-DC Converter series ■ Features Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.
