RSDW60G-12 - DC-DC Converter

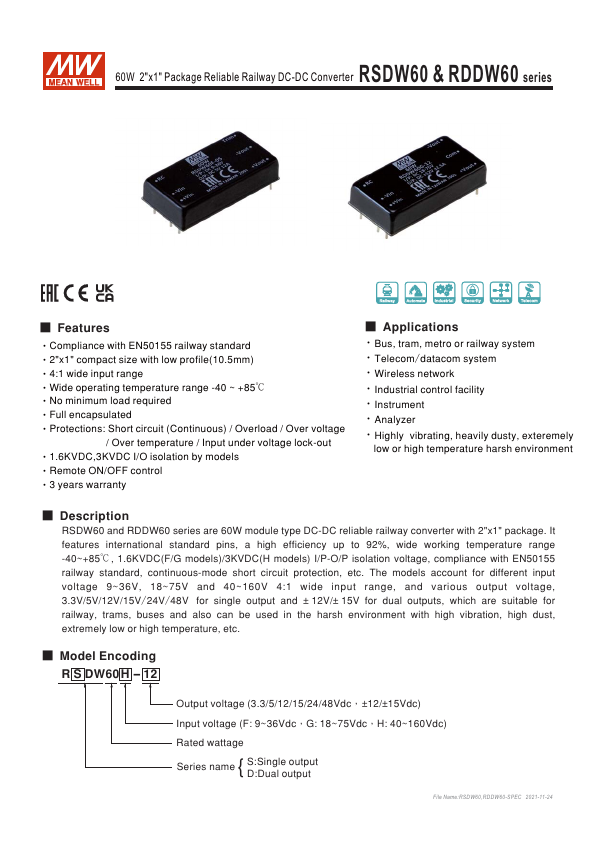

Download the RSDW60G-12 datasheet PDF. This datasheet also covers the RSDW60F-03 variant, as both devices belong to the same dc-dc converter family and are provided as variant models within a single manufacturer datasheet.

Description

RSDW60 and RDDW60 series are 60W module type DC-DC reliable railway converter with 2"x1" package.

Features

  • s Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.6KVDC,3KVDC I/O isolation by models Remote ON/OFF control 3 years warranty.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (RSDW60F-03-MEANWELL.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
RSD-0505DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-0509DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-051.8DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-0512DH ECONOLINE - DC/DC - CONVERTER Recom International Power
RSD-0515DH ECONOLINE - DC/DC - CONVERTER Recom International Power

Other Datasheets by MEAN WELL

Part Number Description
RSDW60G-15 DC-DC Converter
RSDW60G-03 DC-DC Converter
RSDW60G-05 DC-DC Converter
RSDW60G-24 DC-DC Converter
RSDW60F-03 DC-DC Converter

Full PDF Text Transcription

Click to expand full text
RSDW60 & RDDW60 60W 2"x1" Package Reliable Railway DC-DC Converter series ■ Features Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.
