RSDW60G-15 Datasheet DC-dc Converter

Manufacturer: MEAN WELL

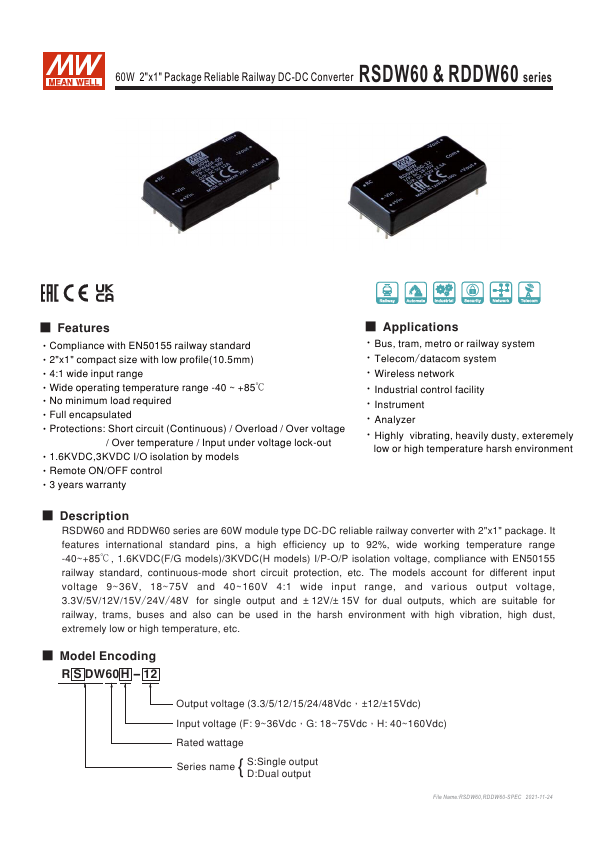

Overview: RSDW60 & RDDW60 60W 2"x1" Package Reliable Railway DC-DC Converter series.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Datasheet Details

RSDW60 and RDDW60 series are 60W module type DC-DC reliable railway converter with 2"x1" package.

s Compliance with EN50155 railway standard 2"x1" compact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage / Over temperature / Input under voltage lock-out 1.6KVDC,3KVDC I/O isolation by models Remote ON/OFF control 3 years warranty.
