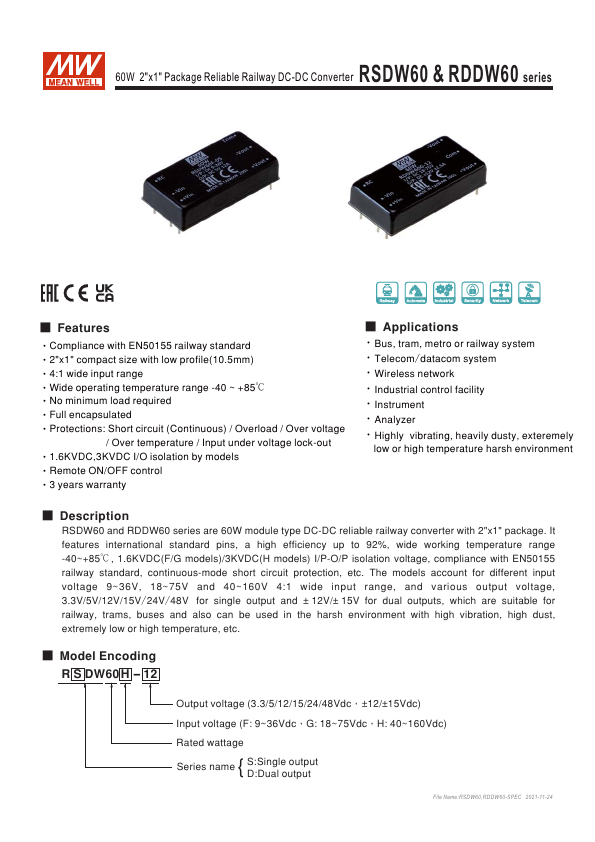

Datasheet Summary
RSDW60 & RDDW60 60W 2"x1" Package Reliable Railway DC-DC Converter series
- Features pliance with EN50155 railway standard 2"x1" pact size with low profile(10.5mm) 4:1 wide input range Wide operating temperature range -40 ~ +85℃ No minimum load required Full encapsulated Protections: Short circuit (Continuous) / Overload / Over voltage
/ Over temperature / Input under voltage lock-out 1.6KVDC,3KVDC I/O isolation by models Remote ON/OFF control 3 years warranty
- Applications
Bus, tram, metro or railway system Tele/data system Wireless network Industrial control facility Instrument Analyzer Highly vibrating, heavily dusty, exteremely low or high temperature harsh environment
-...
