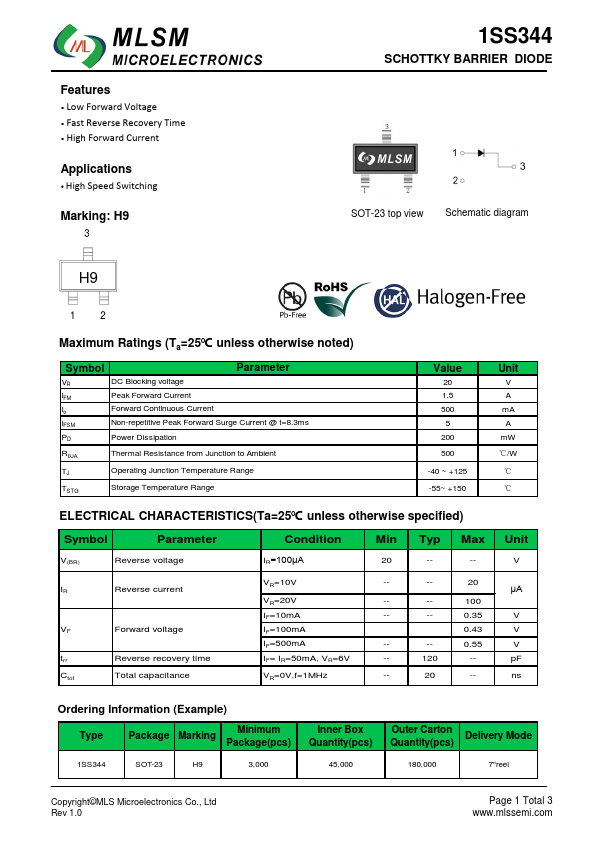

1SS344
1SS344 is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.
Features
- Low Forward Voltage
- Fast Reverse Recovery Time
- High Forward Current
Applications
- High Speed Switching
Marking: H9
SCHOTTKY BARRIER DIODE
SOT-23 top view Schematic diagram
H9
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
DC Blocking voltage
Peak Forward Current
Io
Forward Continuous Current
IFSM
Non-repetitive Peak Forward Surge Current @ t=8.3ms
Power Dissipation
RθJA
Thermal Resistance from Junction to Ambient
Operating Junction Temperature Range
TST G
Storage Temperature Range
Value
20 1.5 500 5 200 500
-40 ~ +125
-55~ +150
Unit
V A m A A m W ℃/W
℃
℃
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol...
