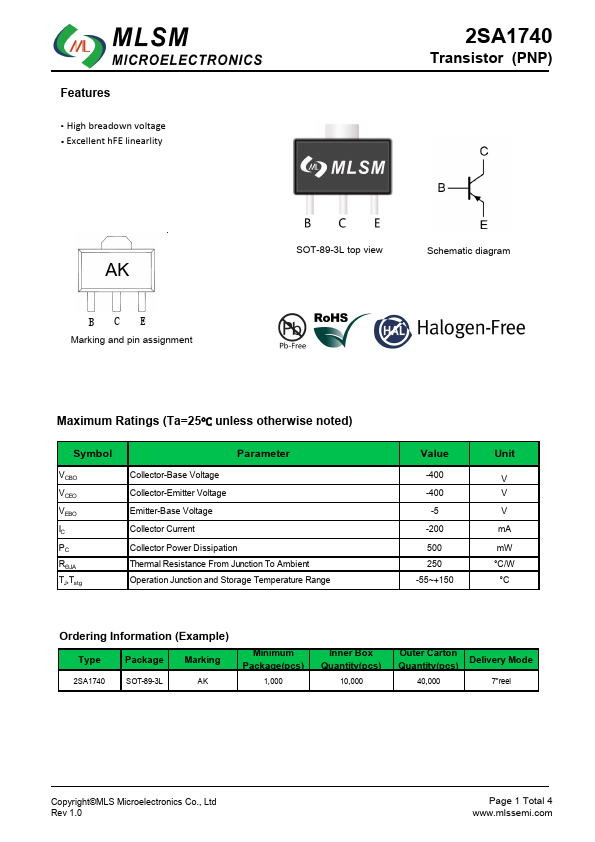

Datasheet Summary
Features
- High breadown voltage
- Excellent hFE linearlity
Transistor (PNP)
X:Rank
Marking and pin assignment
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
-400 -400
-5 -200 500 250 -55~+150
Unit
V V V mA mW °C/W °C
Ordering Information (Example)
Type Package Marking
SOT-89-3L
Minimum Package(pcs)
1,000
Inner Box Quantity(pcs)
10,000
Outer...
