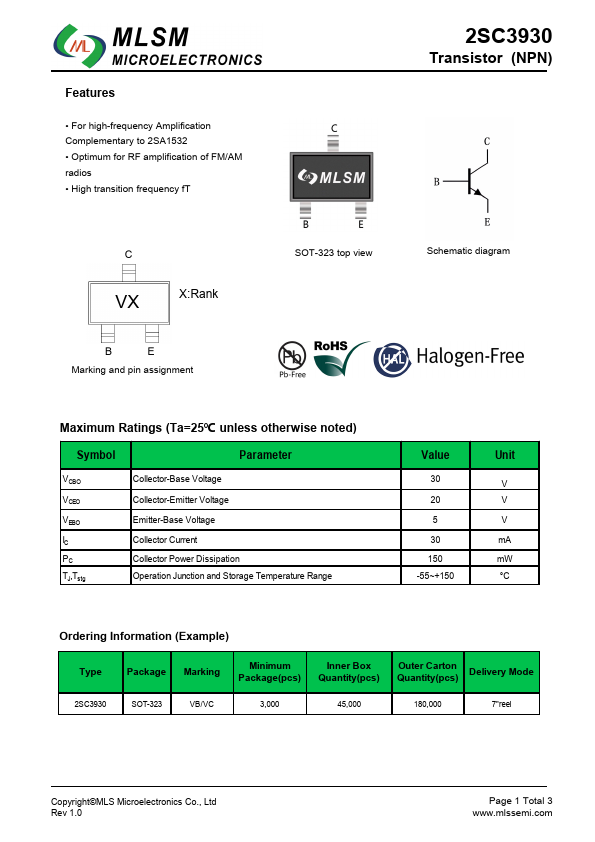

For high-frequency Amplification Complementary to 2SA1532.
Optimum for RF amplification of FM/AM radios.
High transition frequency fT
2SC3930
Transistor (NPN)
C
VX
X:Rank
B
E
Marking and pin assignment
SOT-323 top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Jun.

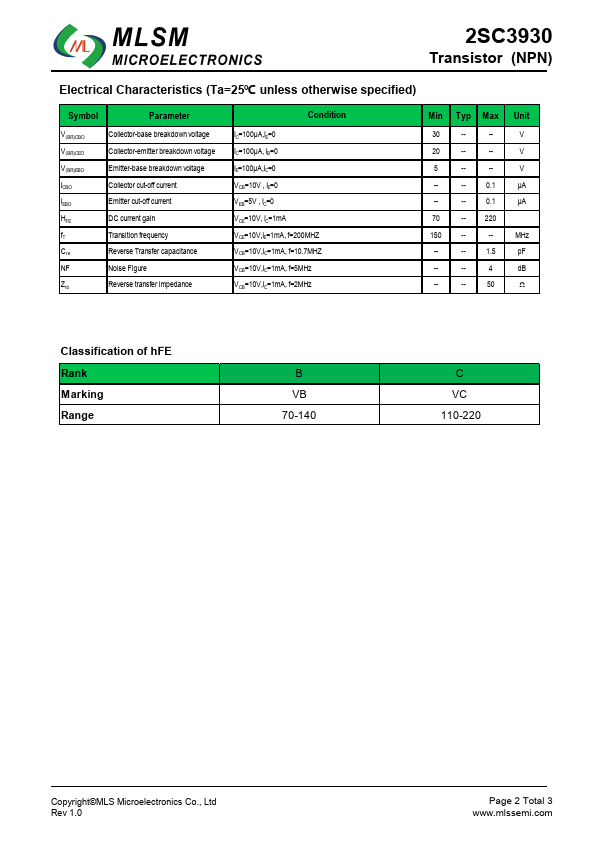

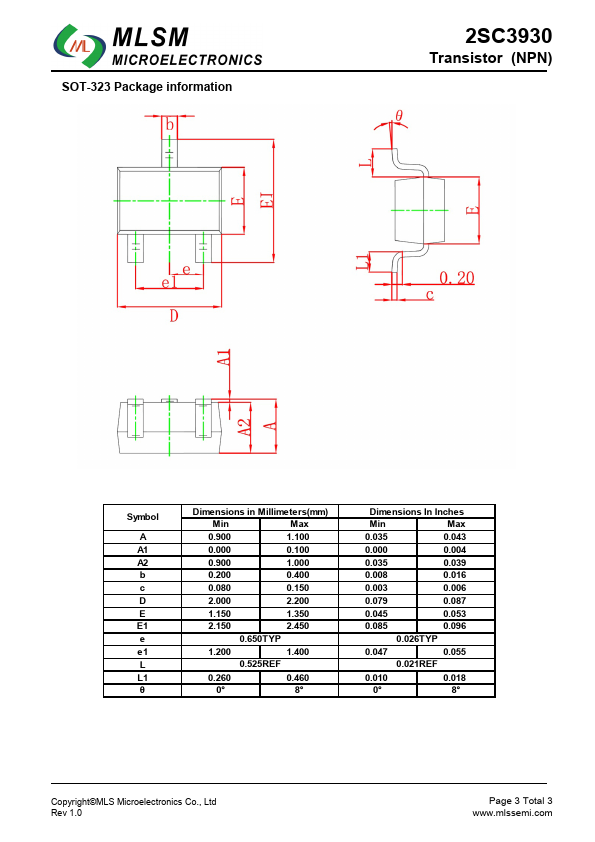

Full PDF Text Transcription for 2SC3930 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SC3930. For precise diagrams, and layout, please refer to the original PDF.
Features • For high-frequency Amplification Complementary to 2SA1532 • Optimum for RF amplification of FM/AM radios • High transition frequency fT 2SC3930 Transistor (NPN...
View more extracted text
of FM/AM radios • High transition frequency fT 2SC3930 Transistor (NPN) C VX X:Rank B E Marking and pin assignment SOT-323 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit 30 V 20 V 5 V 30 mA 150 mW -55~+150 °C Ordering Information (Example) Type Package Marking Minimum Package(pcs) Inner Box Quantity(pcs) Outer Carton Quantity(pcs) Delivery Mode 2SC3930 SOT-323 VB/VC 3,000 45,00
