MLSM 2SD2153
NPN Transistor
| Part No. | 2SD2153 |
|---|---|
| Datasheet | 2SD2153 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |
FEATURES

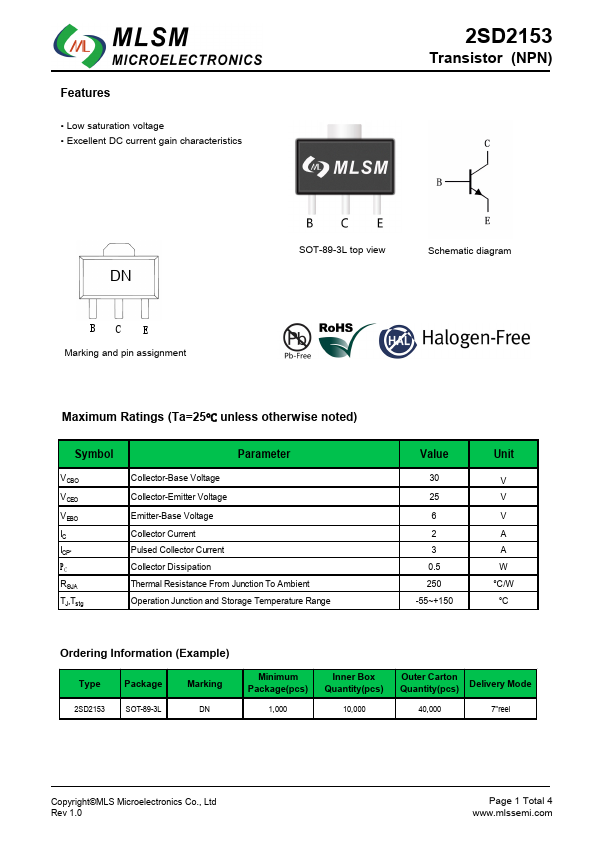

● Low saturation voltage● Excellent DC current gain characteristics 2SD2153 Transistor (NPN) DN BC E Marking and pin assignment SOT-89-3L top view Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC ICP* PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Pulsed Collector Current Collector Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value 30 25 6 2 3 0.5 250 -55~+150 Unit V V V A A W °C/W °C Ordering Information (Example) Type Package 2SD2153 SOT-89-3L Marking DN Minimum Package(pcs) 1,000 Inner Box Quantity(pcs) 10,000 Outer Carton Quantity(pcs) Delivery Mode 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 2SD2153 Transistor (NPN)ELECTRICAL CHARACTERISTICS

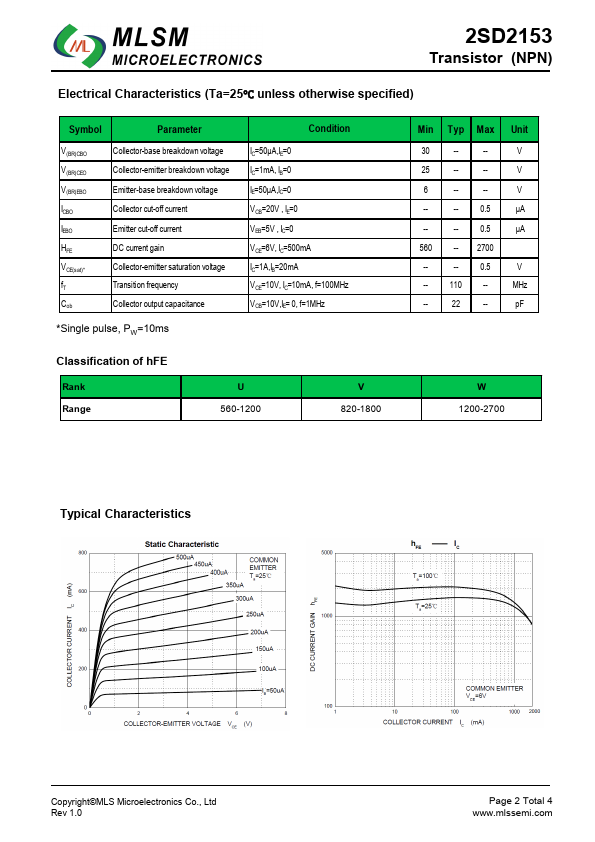

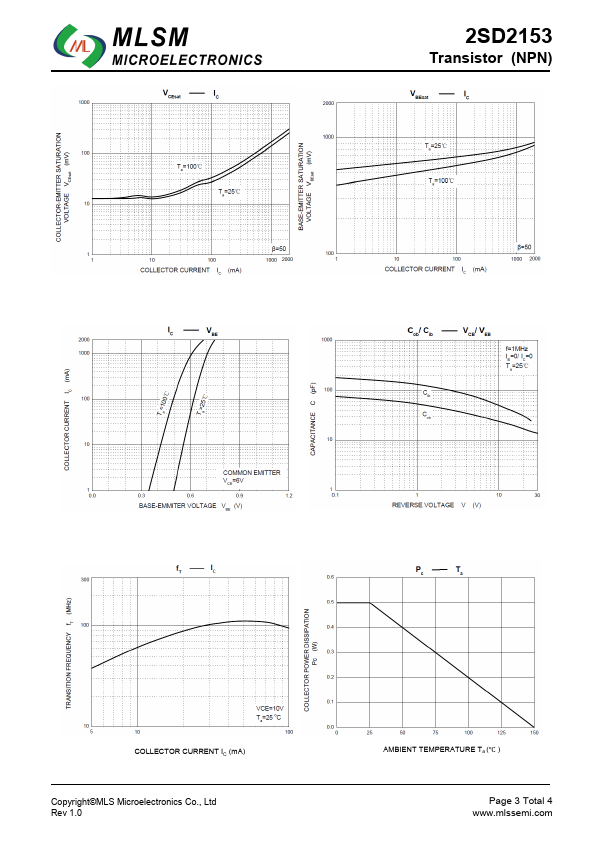

(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat)* fT Cob Collector-base breakd...
