2SD602
2SD602 is NPN Transistor manufactured by MLS Microelectronics.

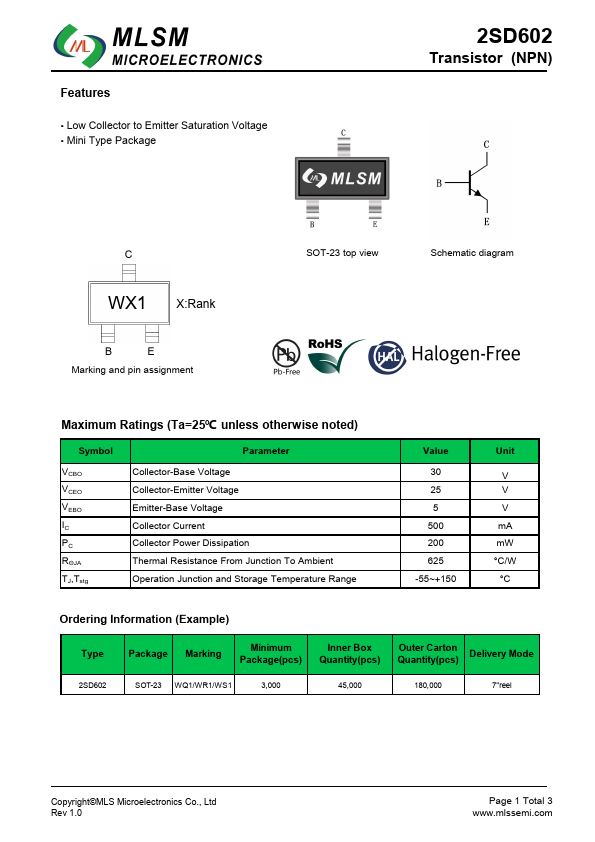

Features
- Low Collector to Emitter Saturation Voltage
- Mini Type Package
Transistor (NPN)
WX1 X:Rank
Marking and pin assignment
SOT-23 top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
30 25 5 500 200 625 -55~+150
Unit
V V V mA mW °C/W °C
Ordering Information (Example)
Type
Package
Marking
Minimum Package(pcs)
Inner Box Quantity(pcs)
Outer Carton Quantity(pcs)

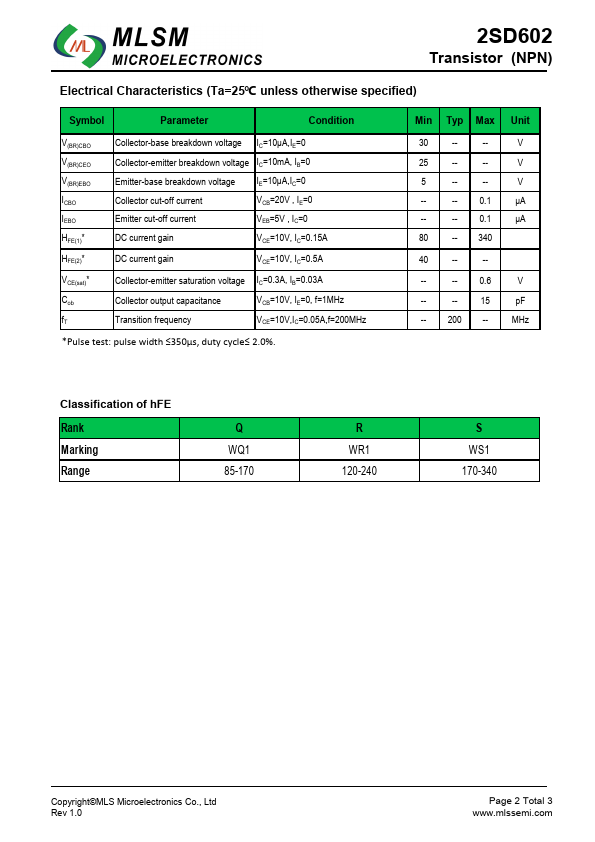

Del...
