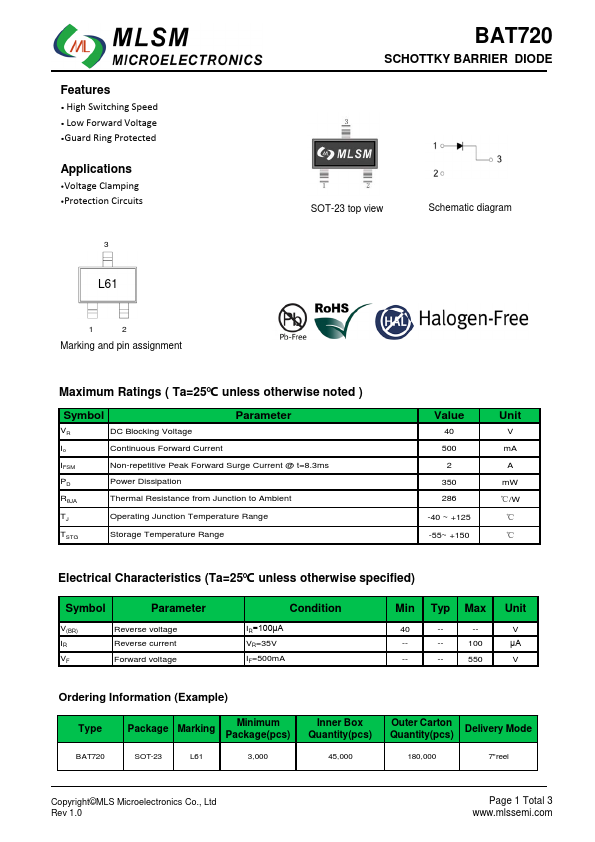

MLSM BAT720
SCHOTTKY BARRIER DIODE
| Part No. | BAT720 |
|---|---|
| Datasheet | BAT720 Download |
| Manufacturer |  MLSM |
| Description | SCHOTTKY BARRIER DIODE |
| Buy | Stock & Price |
FEATURES
● High Switching Speed● Low Forward Voltage
●Guard Ring Protected
APPLICATIONS
●Voltage Clamping●Protection Circuits 3 L61 BAT720 SCHOTTKY BARRIER DIODE SOT-23 top view Schematic diagram 1 2 Marking and pin assignment
MAXIMUM RATINGS
( Ta=25℃ unless otherwise noted ) Symbol Parameter VR DC Blocking Voltage Io Continuous Forward Current IFSM Non-repetitive Peak Forward Surge Current @ t=8.3ms PD Power Dissipation RθJA Thermal Resistance from Junction to Ambient TJ Operating Junction Temperature Range TSTG Storage Temperature Range Value 40 500 2 350 286 -40 ~ +125 -55~ +150 Unit V mA A mW ℃/W ℃ ℃ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR) IR VF Reverse voltage Reverse current Forward voltage Condition IR=100μA VR=35V IF=500mA Min 40 --- Typ Max -- -- -- 100 -- 550 Unit V μA V Ordering Information (Example) Type BAT720 Package Marking Minimum Package(pcs) SOT-23 L61 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Delivery Mode Quant...
