BAT720 Datasheet | Yangjie Electronic

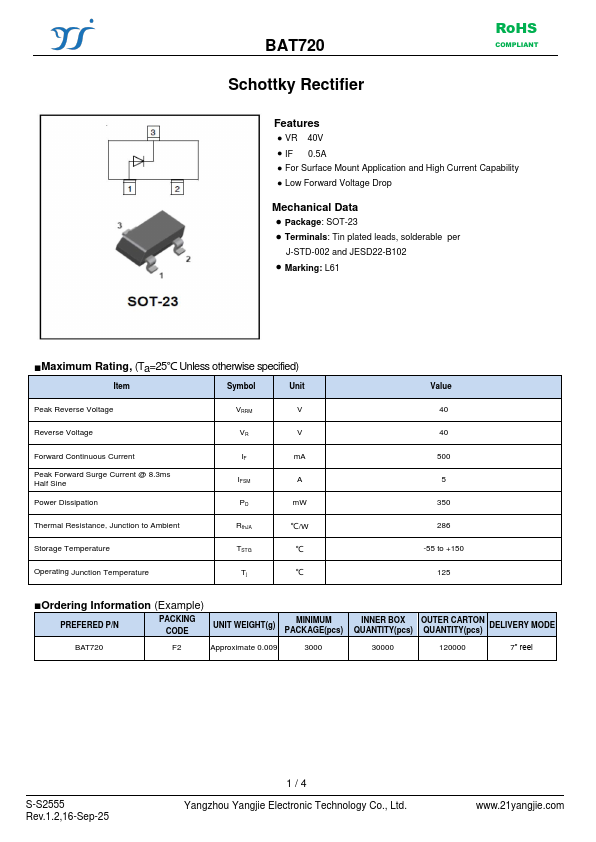

RoHS PLIANT Schottky Rectifier Features - VR 40V - IF 0.5A - For Surface Mount Application and High Current Capability - Low Forward Voltage Drop Mechanical Data - Package: SOT-23 - Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 - Marking: L61 - Maximum Rating, (Ta=25℃ Unless otherwise specified) Item Symbol Unit Peak Reverse Voltage VRRM Reverse Voltage Forward Continuous Current Peak Forward Surge Current @ 8.3ms Half Sine Power Dissipation Thermal Resistance, Junction to Ambient Storage Temperature Operating Junction Temperature IF IFSM PD RthJA TSTG Tj mA A mW ℃/W ℃ ℃ Value 40 40 500 5 350 286 -55 to +150 125 - Ordering...
