BAT720
BAT720 is Schottky barrier diode manufactured by Galaxy Microelectronics.

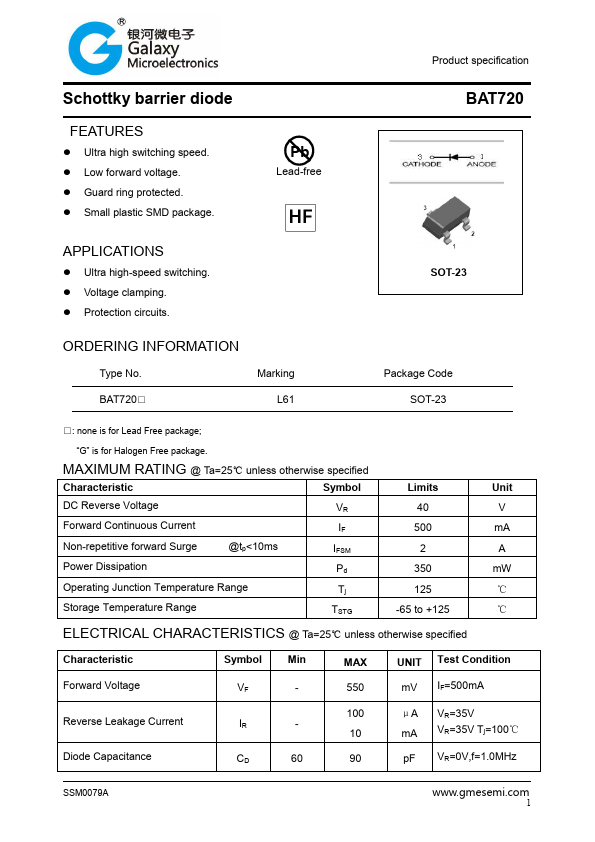

Product specification
Schottky barrier diode
Features
- Ultra high switching speed.
- Low forward voltage.
- Guard ring protected.
- Small plastic SMD package.
Pb
Lead-free
APPLICATIONS
- Ultra high-speed switching.
- Voltage clamping.
- Protection circuits.

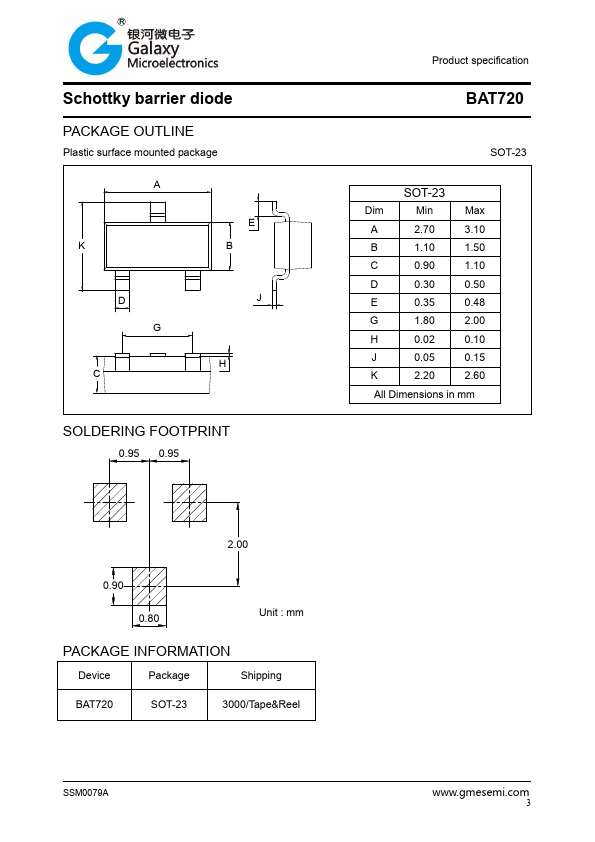

SOT-23
ORDERING INFORMATION
Type No.
Marking
BAT720-
L61
Package Code SOT-23
- : none is for Lead Free package;
“G” is for Halogen Free package.
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Characteristic
Symbol
DC Reverse Voltage
Forward Continuous Current
Non-repetitive forward Surge
@tp<10ms
IFSM...
