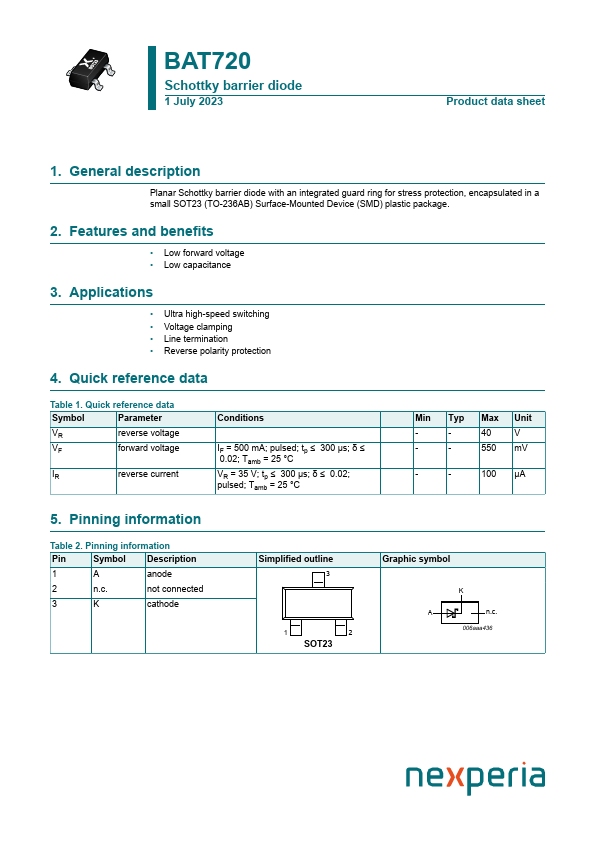

BAT720
BAT720 is Schottky barrier diode manufactured by Nexperia.
Schottky barrier diode
1 July 2023
Product data sheet
1. General description
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low forward voltage
- Low capacitance
3. Applications
- Ultra high-speed switching
- Voltage clamping
- Line termination
- Reverse polarity protection
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VR reverse voltage
VF forward voltage
IR reverse current
Conditions
IF = 500 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C VR = 35 V; tp ≤ 300 µs; δ ≤ 0.02; pulsed; Tamb = 25...
