MLSM BAV74
Switching Diodes
| Part No. | BAV74 |
|---|---|
| Datasheet | BAV74 Download |
| Manufacturer |  MLSM |
| Description | Switching Diodes |
| Buy | Stock & Price |
FEATURES
● Fast Switching Speed● For General Purpose Switching
APPLICATIONS

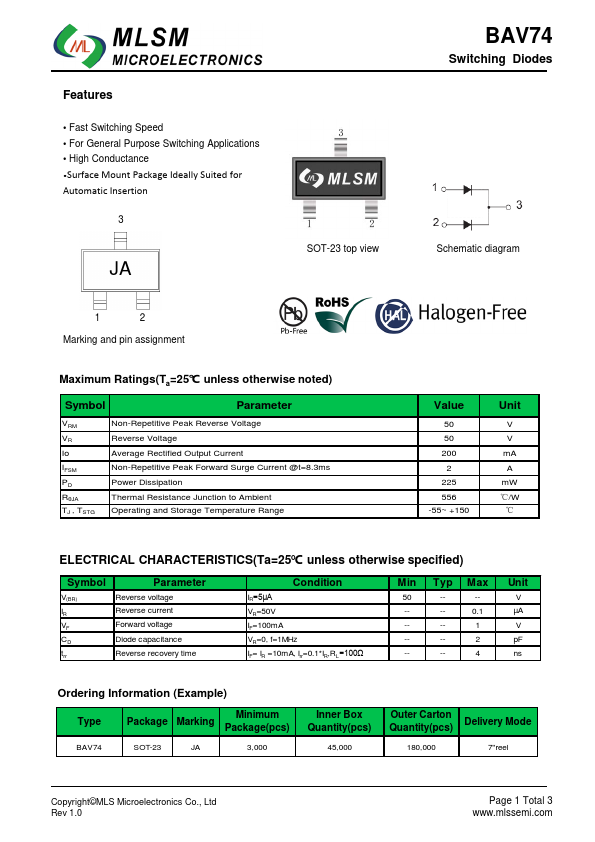

● High Conductance●Surface Mount Package Ideally Suited for Automatic Insertion 3 JA SOT-23 top view BAV74 Switching Diodes Schematic diagram 1 2 Marking and pin assignment
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VRM VR Io IFSM PD RθJA TJ , TSTG Non-Repetitive Peak Reverse Voltage Reverse Voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Value 50 50 200 2 225 556 -55~ +150 Unit V V mA A mW ℃/W ℃ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol V(BR) IR VF CD trr Parameter Reverse voltage Reverse current Forward voltage Diode capacitance Reverse recovery time Condition IR= 5μA VR=50V IF=100mA VR=0, f=1MHz IF= IR =10mA, Irr=0.1*IR,RL=100Ω Min 50 ----- Typ ------ Max -0.1 1 2 4 Unit V µA V pF ns Ordering Information (Example) Type P...
