MLSM BCW61B
PNP Transistor
| Part No. | BCW61B |
|---|---|
| Datasheet | BCW61B Download |
| Manufacturer |  MLSM |
| Description | PNP Transistor |
| Buy | Stock & Price |

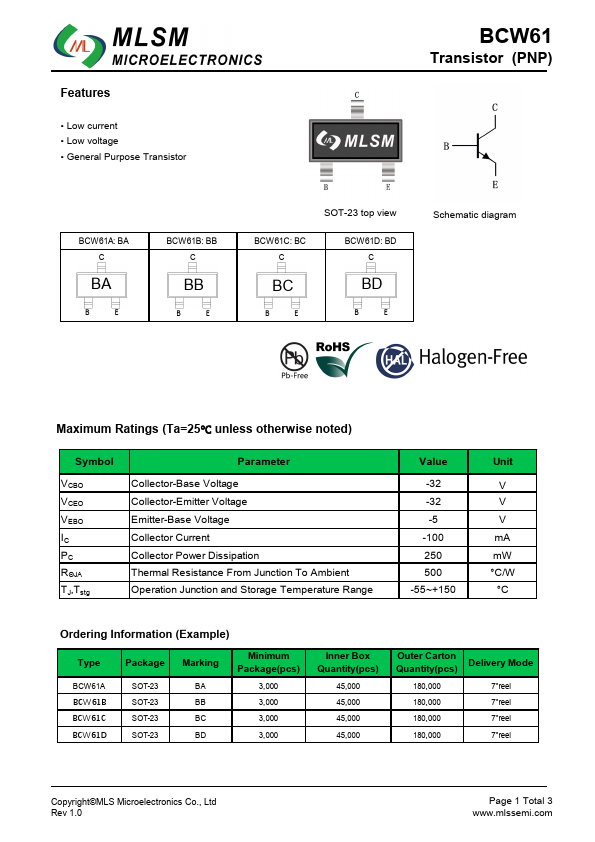

FEATURES
● Low current● Low voltage
● General Purpose Transistor BCW61 Transistor (PNP) BCW61A: BA C BA B E BCW61B: BB C BB B E SOT-23 top view BCW61C: BC C BC B E BCW61D: BD C BD B E Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value -32 -32 -5 -100 250 500 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type BCW61A BCW61B BCW61C BCW61D Package SOT-23 SOT-23 SOT-23 SOT-23 Marking BA BB BC BD Minimum Package(pcs) 3,000 3,000 3,000 3,000 Inner Box Quantity(pcs) 45,000 45,000 45,000 45,000 Outer Carton Quantity(pcs) Delivery Mode 180,000 7"reel 180,000 7"reel 180,000 7"reel 180,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 3 BCW61 Transistor (PNP) Electrical Characteri...
