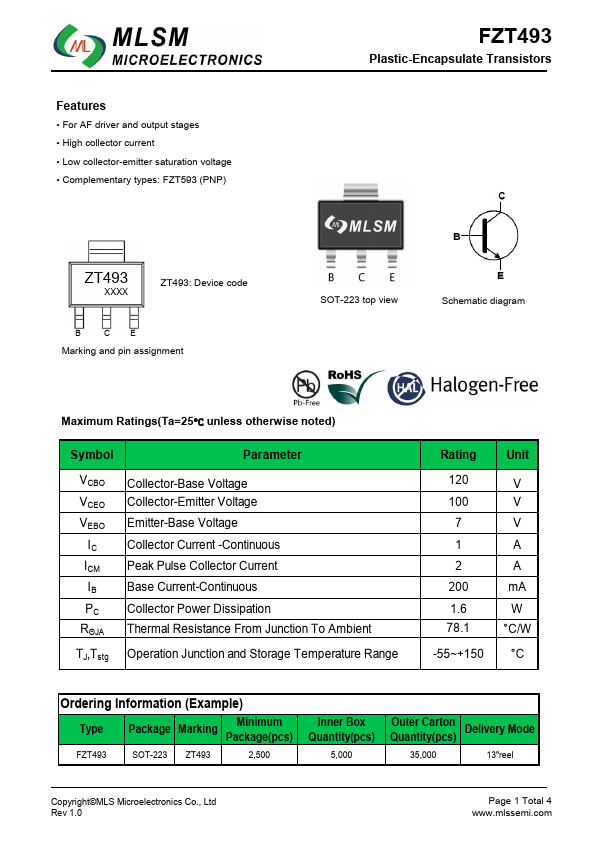

Datasheet Summary
Features
- For AF driver and output stages
- High collector current
- Low collector-emitter saturation voltage
- plementary types: FZT593 (PNP)
Plastic-Encapsulate Transistors
S1 D2 D1
ZT493
XXXX
ZT493: Device code
Marking and pin assignment
SOT-223 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO
IC ICM IB PC RΘJA
TJ,Tstg
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Peak Pulse Collector Current Base Current-Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient
Operation Junction and Storage Temperature Range
Rating
120...
