MLSM KTC4375
NPN Transistor
| Part No. | KTC4375 |
|---|---|
| Datasheet | KTC4375 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |

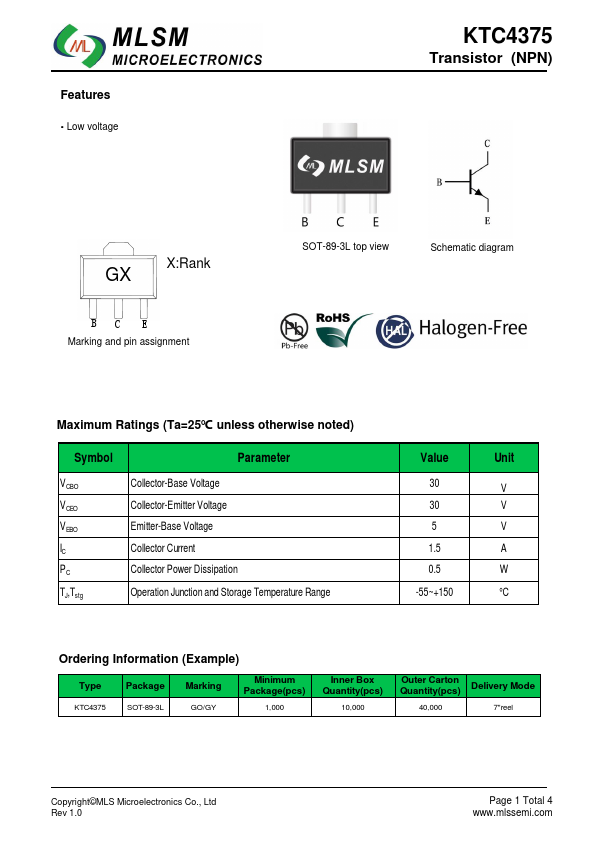

FEATURES
● Low voltage KTC4375 Transistor (NPN) X:Rank X:Rank GX BC E Marking and pin assignment SOT-89-3L top view Schematic diagramMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO IC PC TJ,Tstg Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit 30 V 30 V 5 V 1.5 A 0.5 W -55~+150 °C Ordering Information (Example) Type KTC4375 Package SOT-89-3L Marking GO/GY Minimum Package(pcs) 1,000 Inner Box Quantity(pcs) 10,000 Outer Carton Quantity(pcs) Delivery Mode 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 KTC4375 Transistor (NPN)ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol Parameter Condition V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat) VBE Cob fT Collector-base breakdown voltage IC=1mA,IE=0 Collector-emitter breakdown voltage IC=10mA, IB=0 Emitter-base breakdown voltage IE=1...
