MLSM KTC4376
NPN Transistor
| Part No. | KTC4376 |
|---|---|
| Datasheet | KTC4376 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |

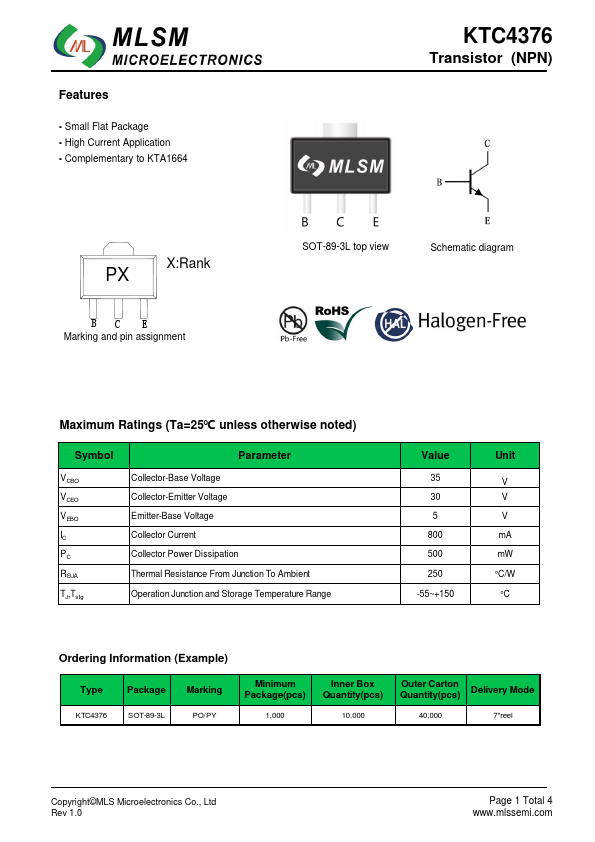

FEATURES
● Small Flat Package● High Current Application
● Complementary to KTA1664 KTC4376 Transistor (NPN) X:Rank X:Rank PX BC E Marking and pin assignment SOT-89-3L top view Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value 35 30 5 800 500 250 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type Package KTC4376 SOT-89-3L Marking PO/PY Minimum Package(pcs) 1,000 Inner Box Quantity(pcs) 10,000 Outer Carton Quantity(pcs) Delivery Mode 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd ℃ Rev 1.0 Page 1 Total 4 KTC4376 Transistor (NPN)ELECTRICAL CHARACTERISTICS

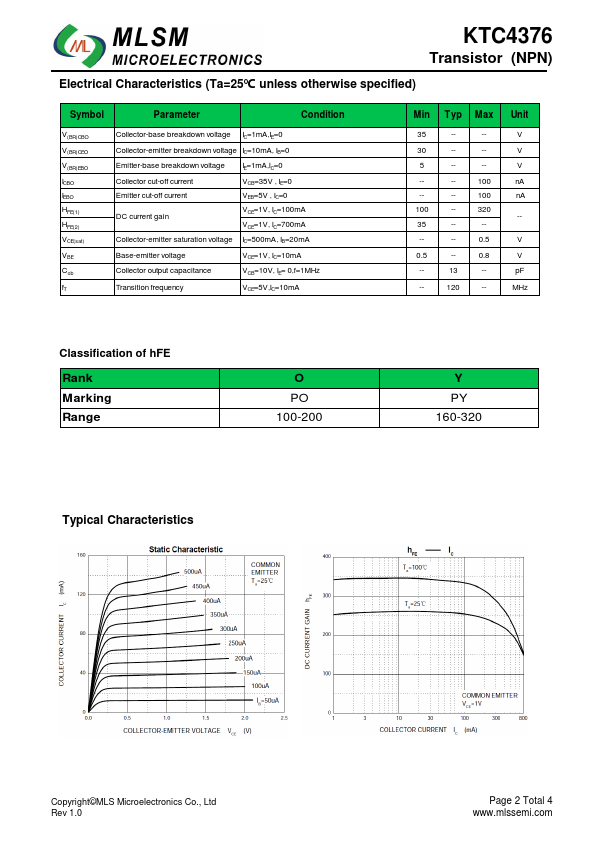

(Ta=25℃ unless otherwise specified) Symbol Parameter Condition V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE(1) HFE(2) VCE(sat) VBE Cob...
