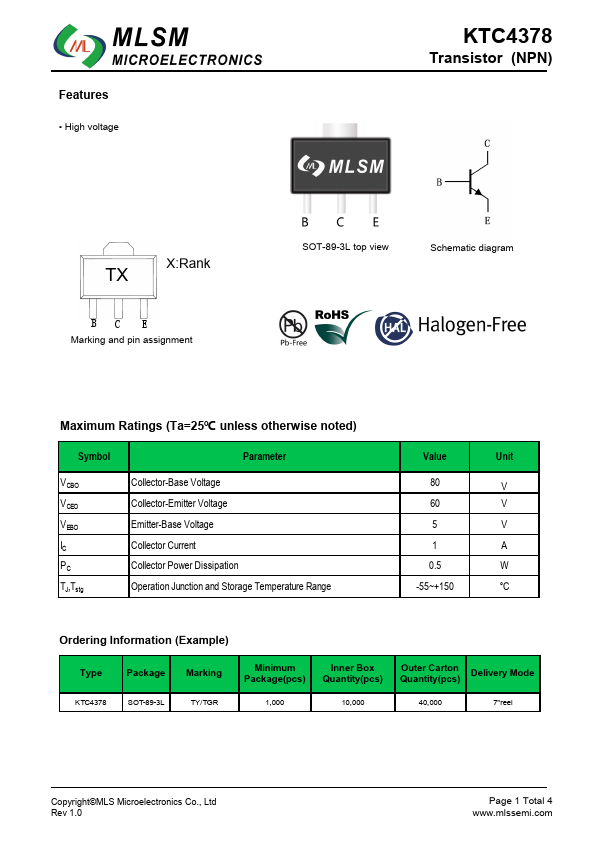

KTC4378
KTC4378 is NPN Transistor manufactured by MLS Microelectronics.
Features
- High voltage
Transistor (NPN)
X:Rank
X:Rank
BC E
Marking and pin assignment
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
Unit
-55~+150
°C
Ordering Information (Example)
Type
Package
SOT-89-3L
Marking
TY/TGR
Minimum Package(pcs)
Inner Box Quantity(pcs)
Outer Carton Quantity(pcs)
Delivery Mode
1,000
10,000
40,000
7"reel
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 4 .mlssemi.
Transistor (NPN)

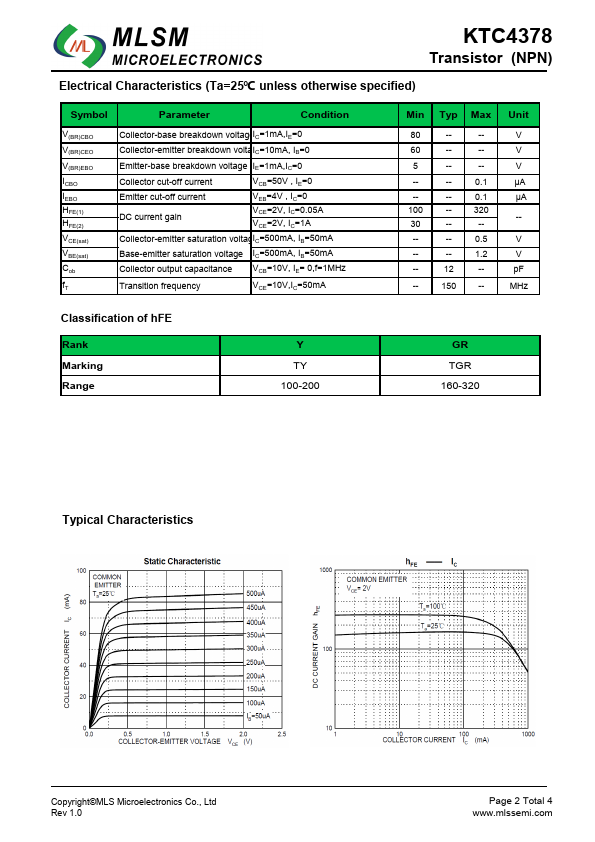

Electrical Characteristics (Ta=25℃ unless otherwise specified)
Symbol
Parameter...
