MJD32C
MJD32C is PNP Transistors manufactured by MLS Microelectronics.

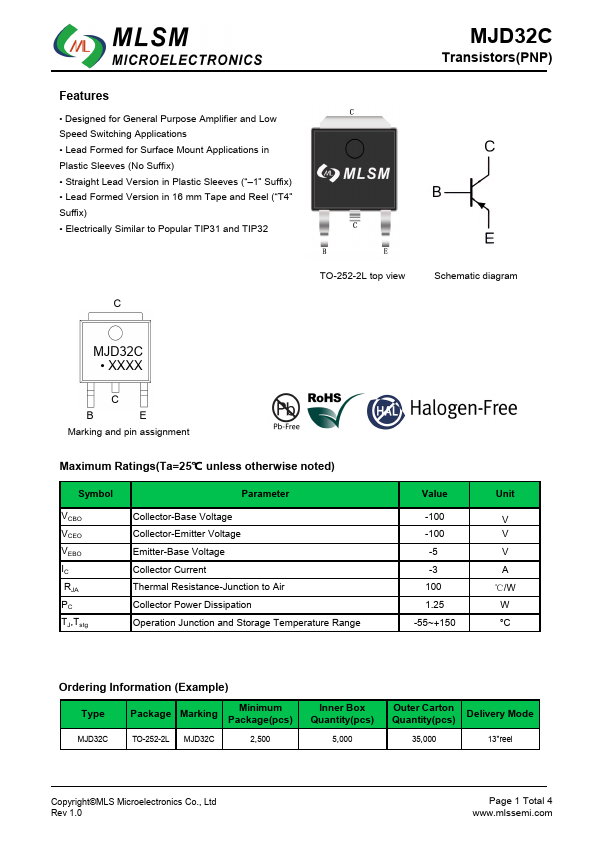

Features
- Designed for General Purpose Amplifier and Low Speed Switching Applications
- Lead Formed for Surface Mount Applications in Plastic Sleeves (No Suffix)
- Straight Lead Version in Plastic Sleeves (“- 1” Suffix)
- Lead Formed Version in 16 mm Tape and Reel (“T4” Suffix)
- Electrically Similar to Popular TIP31 and TIP32
Transistors(PNP)
TO-252-2L top view
Schematic diagram
- XXXX
Marking and pin assignment
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC RJA PC TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Thermal Resistance-Junction to Air Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
-100 -100 -5 -3 100 1.25 -55~+150
Unit
V V V A ℃/W W °C
Ordering Information (Example)
Type
Package
Marking
Minimum Package(pcs)
TO-252-2L MJD32C
2,500
Inner Box Quantity(pcs)
5,000
Outer Carton Quantity(pcs)
Delivery Mode
35,000
13"reel
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 4 .mlssemi.

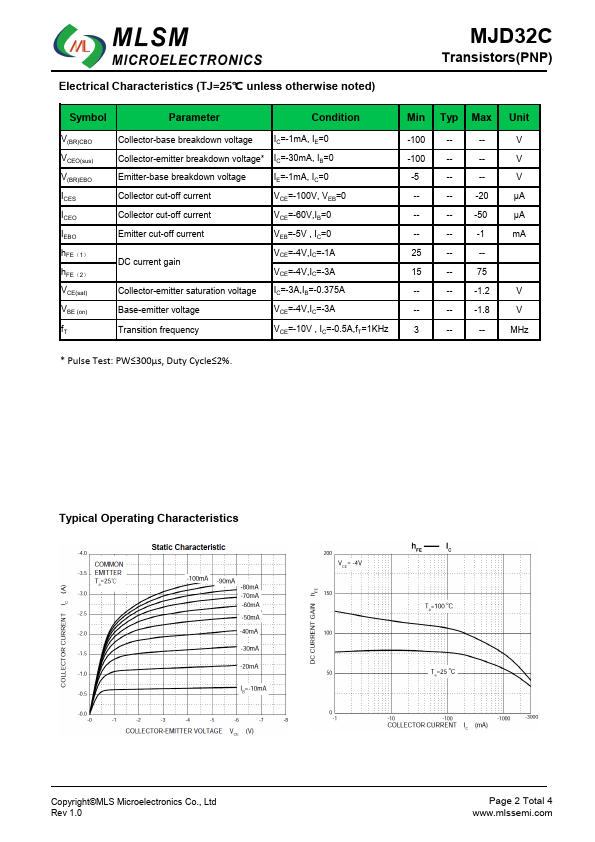

Electrical Characteristics (TJ=25℃ unless otherwise noted)
Transistors(PNP)...
