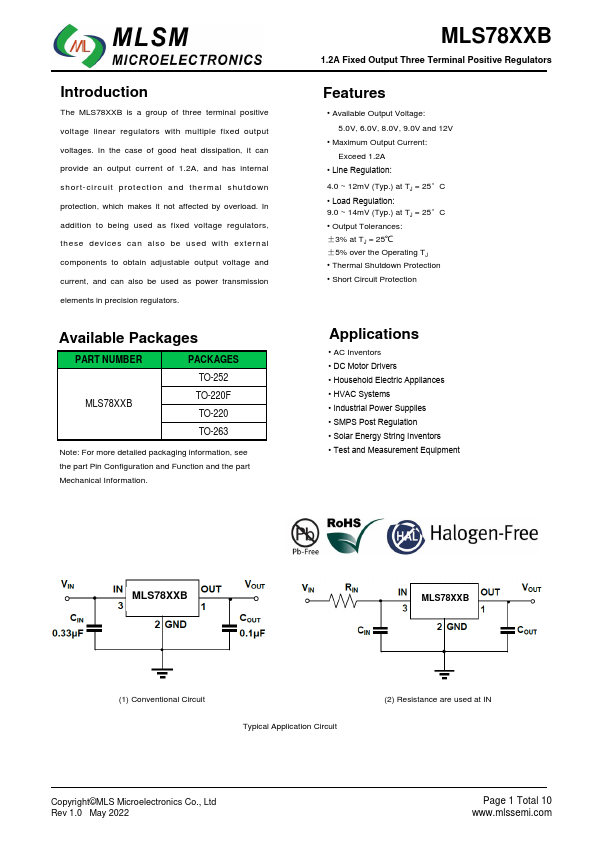

MLS7806B
Features
- Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V and S112VD2
- Maximum Output Current:D1 Exceed 1.2A
- Line Regulation: 4.0 ~ 12m V (Typ.) at TJ = 25°C
- Load Regulation: 9.0 ~ 14m V (Typ.) at TJ = 25°C
- Output Tolerances: ±3% at TJ = 25℃ ±5% over the Operating TJ
- Thermal Shutdown Protection
- Short Circuit Protection
Applications
- AC Inventors
- DC Motor Drivers
- Household Electric Appliances
- HVAC Systems
- Industrial Power Supplies
- SMPS Post Regulation
- Solar Energy String Inventors
- Test and Measurement Equipment
MLS78XXB
MLMSL7S87X8XB Series
(1) Conventional Circuit
Typical Application Circuit
(2) Resistance are used at IN
Copyright©MLS Microelectronics Co., Ltd Rev 1.0 May 2022
Page 1 Total 10 .mlssemi.
MLS78XXB
1.2A Fixed Output Three Terminal Positive Regulators
Pin Configuration and Marking Information
Model
Device
Package
Minimum Package(pcs)
Inner Box Quantity(pcs)
Outer Carton Quantity(pcs)
Delivery Mode
MLS78XXB MLS78XXB
TO-252
2,500...
