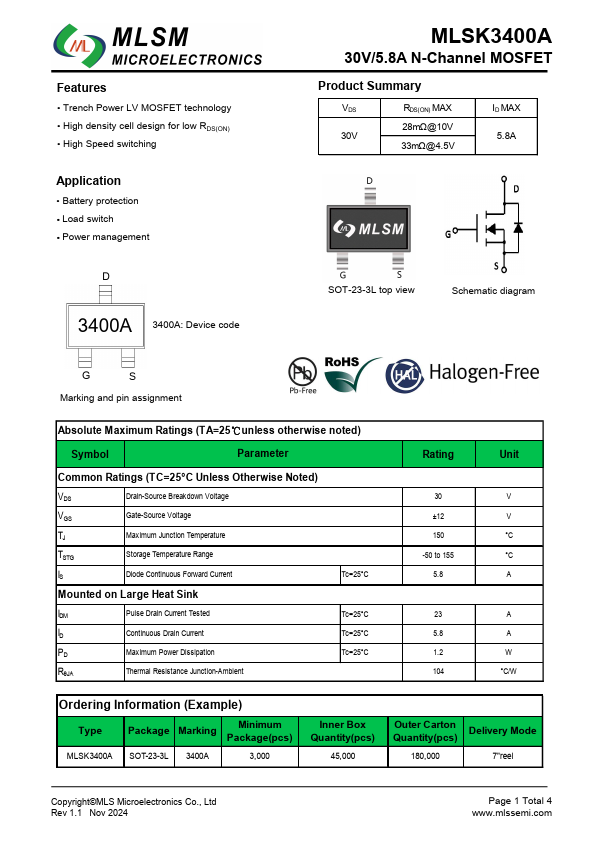

MLSK3400A
MLSK3400A is N-Channel MOSFET manufactured by MLS Microelectronics.
Features
- Trench Power LV MOSFET technology
- High density cell design for low RDS(ON)
- High Speed switching
Application
- Battery protection
- Load switch
- Power management
3400A 3400A: Device code
30V/5.8A N-Channel MOSFET
Product Summary
RDS(ON) MAX
30V
28mΩ@1S01 VD2
33mΩ@D14.5V
ID MAX 5.8A
SOT-23-3L top view
Schematic diagram
Marking and pin assignment
Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Symbol
Parameter mon Ratings (TC=25°C Unless Otherwise Noted)
Drain-Source Breakdown Voltage
Gate-Source Voltage
Maximum Junction Temperature
TSTG
Storage Temperature Range
Diode Continuous Forward Current
Mounted on Large Heat Sink
Pulse Drain Current...
