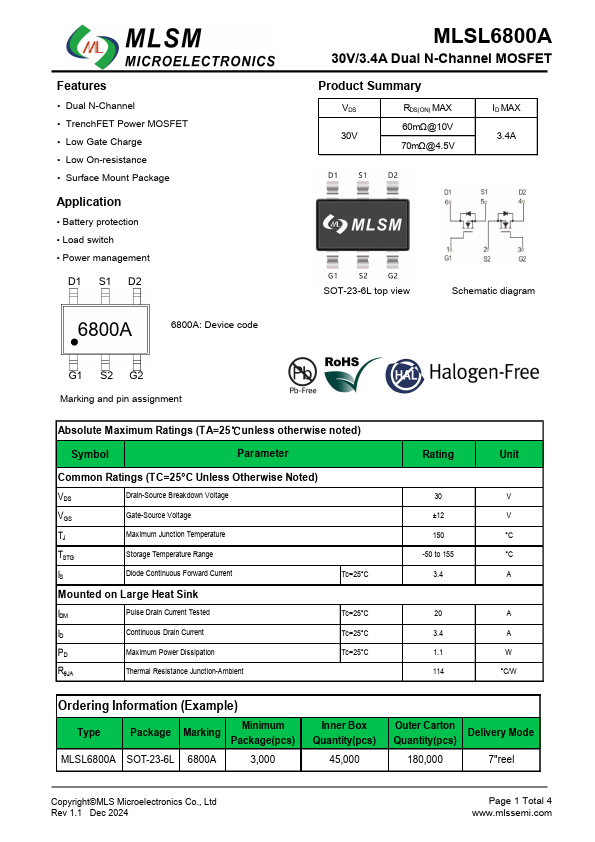

MLSL6800A
MLSL6800A is 30V/3.4A Dual N-Channel MOSFET manufactured by MLS Microelectronics.
Features
- Dual N-Channel
- Trench FET Power MOSFET
- Low Gate Charge
- Low On-resistance
- Surface Mount Package
Application
- Battery protection
- Load switch
- Power management
D1 S1 D2
6800A
6800A: Device code
30V/3.4A Dual N-Channel MOSFET
Product Summary
RDS(ON) MAX
30V
60mΩ@1S01VD2
70mΩ@D14.5V
ID MAX 3.4A
SOT-23-6L top view
Schematic diagram
G1 S2 G2 Marking and pin...
