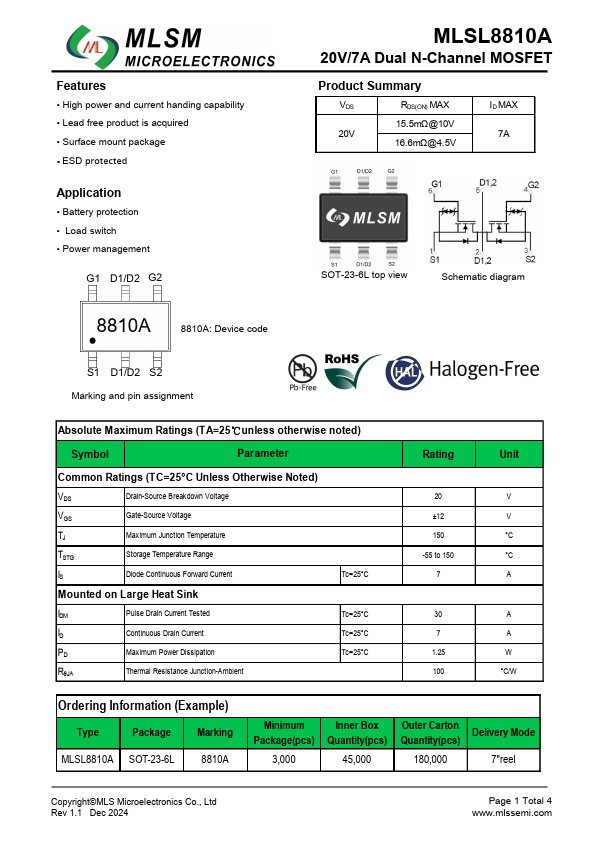

MLSL8810A
MLSL8810A is Dual N-Channel MOSFET manufactured by MLS Microelectronics.
Features
- High power and current handing capability
- Lead free product is acquired
- Surface mount package
- ESD protected
Application
- Battery protection
- Load switch
- Power management
G1 D1/D2 G2
20V/7A Dual N-Channel MOSFET
Product Summary
RDS(ON) MAX
15.5mΩ@10V
20V
S1 D2
16.6mΩD@1 4.5V
ID MAX 7A
SOT-23-6L top view
Schematic diagram
8810A
8810A: Device code
S1 D1/D2 S2 Marking and pin...
