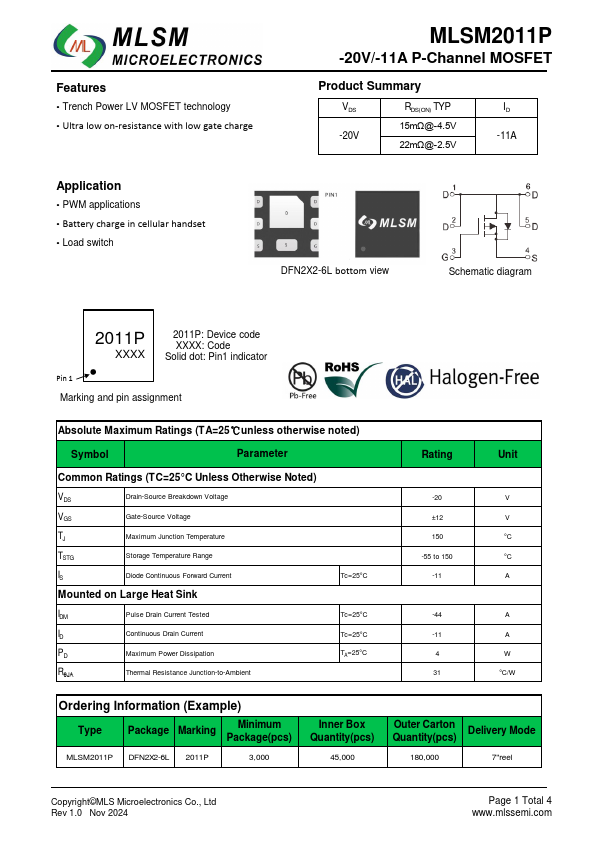

MLSM2011P
MLSM2011P is P-Channel MOSFET manufactured by MLS Microelectronics.
Features
- Trench Power LV MOSFET technology
- Ultra low on-resistance with low gate charge
-20V/-11A P-Channel MOSFET
Product Summary
VDS -20V
RDS(ON) TYP 15mΩ@-4S1.5DV2 22mΩ@D1-2.5V
ID -11A
Application
- PWM applications
- Battery charge in cellular handset
- Load switch
DFN2X2-6L bottom view
Schematic diagram
2011P
XXXX
2011P: Device code XXXX: Code Solid dot: Pin1 indicator
Pin 1
Marking and pin...
