MMSTA92
MMSTA92 is PNP Transistors manufactured by MLS Microelectronics.
Features
- Small Surface Mount Package
- plementary to MMSTA42
- Ideal for Medium Power Amplification and Switching
Transistor (PNP)
K3R

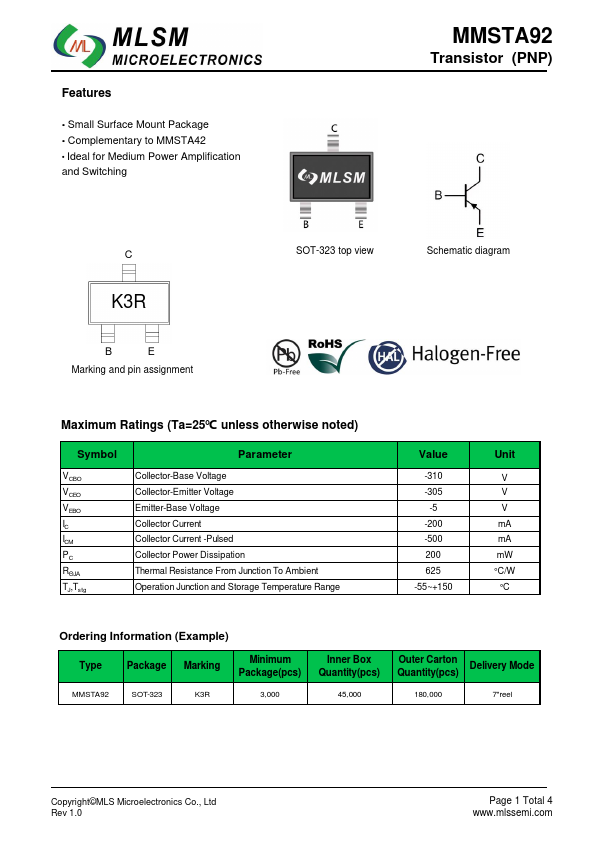

Marking and pin assignment
SOT-323 top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC ICM PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Current -Pulsed Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
-310 -305
-5 -200 -500 200 625 -55~+150
Unit
V V V m A m A m W °C/W °C
Ordering Information (Example)
Type
Package
Marking
Minimum Package(pcs)
Inner Box Quantity(pcs)
Outer Carton Quantity(pcs)
Delivery Mode
SOT-323
K3R
3,000
45,000
180,000
7"reel
Copyright©MLS Microelectronics Co., Ltd
℃
Rev 1.0
Page 1 Total 4...
