MLSM PZTA42
NPN Transistors
| Part No. | PZTA42 |
|---|---|
| Datasheet | PZTA42 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistors |
| Buy | Stock & Price |
FEATURES
● High breakdown voltage● Low collector-emitter saturation voltage

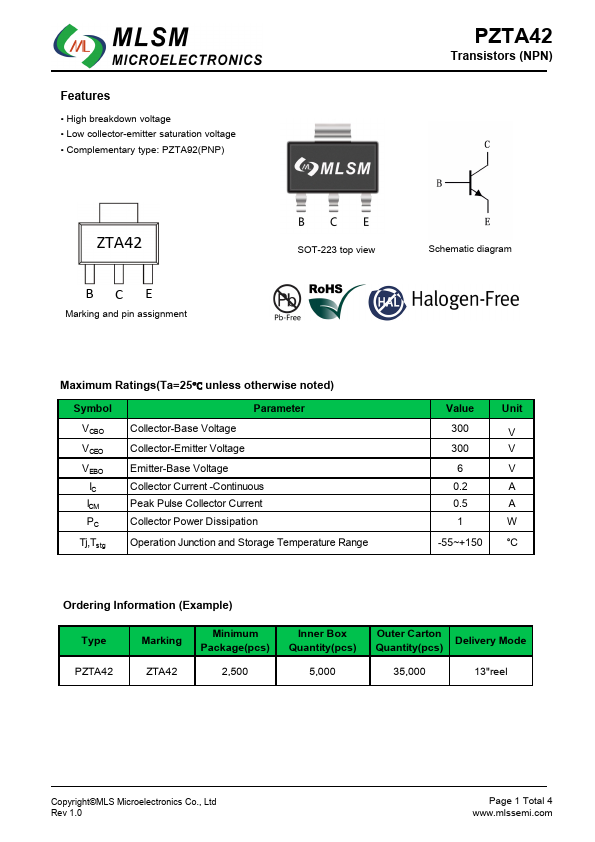

● Complementary type: PZTA92(PNP) PZTA42 Transistors (NPN) D2 ZTA42 BCE Marking and pin assignment SOT-223 top view Schematic diagram
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC ICM PC Tj,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Peak Pulse Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range Value Unit 300 V 300 V 6 V 0.2 A 0.5 A 1 W -55~+150 °C Ordering Information (Example) Type PZTA42 Marking ZTA42 Minimum Package(pcs) 2,500 Inner Box Quantity(pcs) 5,000 Outer Carton Quantity(pcs) Delivery Mode 35,000 13"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4ELECTRICAL CHARACTERISTICS

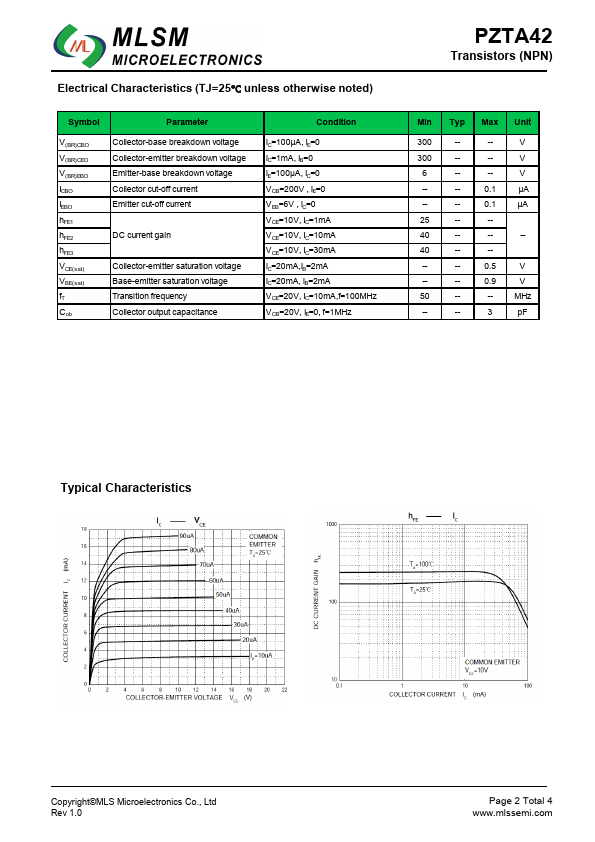

(TJ=25℃ unless otherwise noted) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO hFE1 hFE2 hFE3 VCE(sat) VBE(sat) fT Cob Collector-base breakdown voltage Collector-em...
