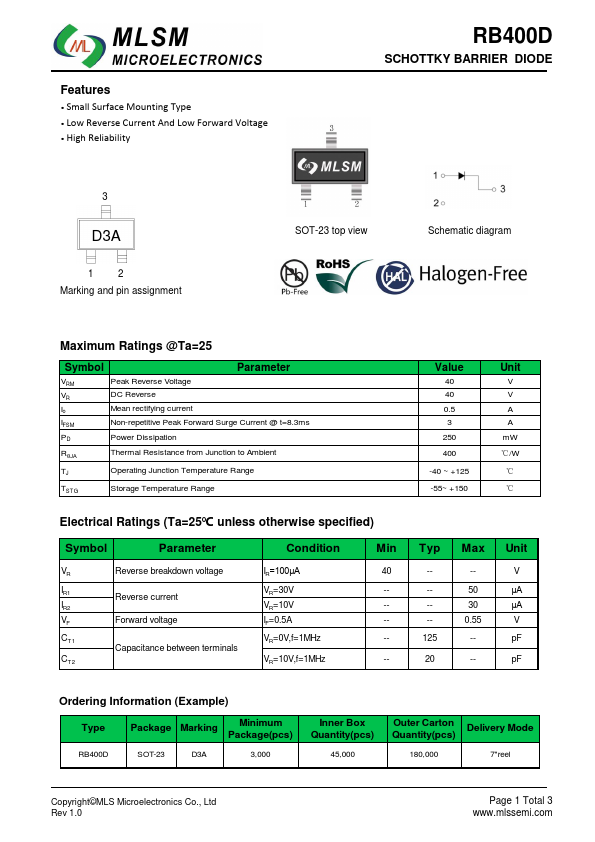

RB400D
RB400D is SCHOTTKY BARRIER DIODE manufactured by MLS Microelectronics.
Features
- Small Surface Mounting Type
- Low Reverse Current And Low Forward Voltage
- High Reliability
SCHOTTKY BARRIER DIODE
D3A
12 Marking and pin assignment
SOT-23 top view
Schematic diagram
Maximum Ratings @Ta=25
Symbol
Parameter
Peak Reverse Voltage
DC Reverse
Io
Mean rectifying current
IFSM
Non-repetitive Peak Forward Surge Current @ t=8.3ms
Power Dissipation
RθJA
Thermal Resistance from Junction to Ambient
Operating Junction Temperature Range
TST G
Storage Temperature Range
Value
40 40 0.5 3 250 400
-40 ~ +125
-55~ +150
Unit
V V A A m W ℃/W
℃
℃
Electrical Ratings (Ta=25℃ unless otherwise specified)
Symbol
Parameter...
