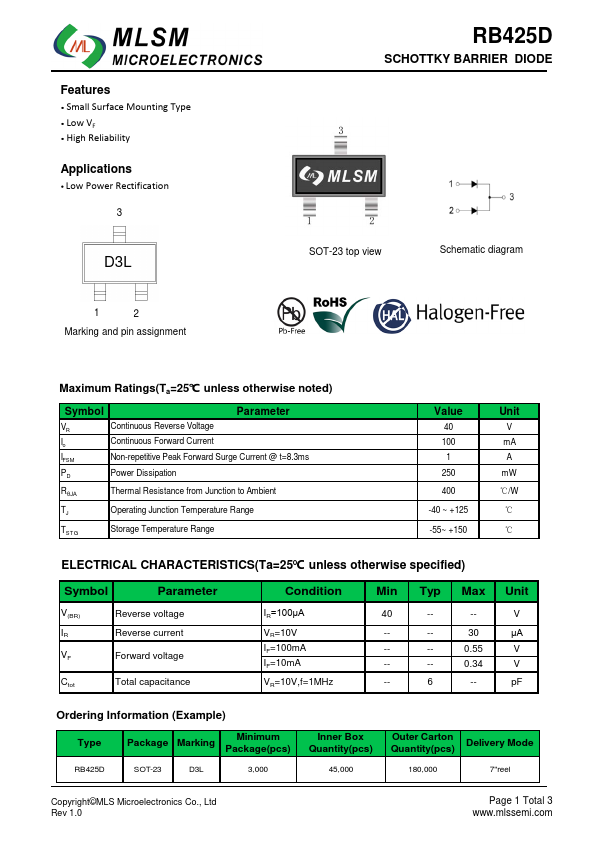

MLSM RB425D
SCHOTTKY BARRIER DIODE
| Part No. | RB425D |
|---|---|
| Datasheet | RB425D Download |
| Manufacturer |  MLSM |
| Description | SCHOTTKY BARRIER DIODE |
| Buy | Stock & Price |
FEATURES
● Small Surface Mounting Type● Low VF
● High Reliability
APPLICATIONS
● Low Power Rectification 3 D3L 1 2 Marking and pin assignment RB425D SCHOTTKY BARRIER DIODE SOT-23 top view Schematic diagramMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VR Continuous Reverse Voltage Io Continuous Forward Current IFSM Non-repetitive Peak Forward Surge Current @ t=8.3ms PD Power Dissipation RθJA Thermal Resistance from Junction to Ambient TJ Operating Junction Temperature Range TST G Storage Temperature Range Value 40 100 1 250 400 -40 ~ +125 -55~ +150 Unit V mA A mW ℃/W ℃ ℃ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR) IR Reverse voltage Reverse current VF Forward voltage Ctot Total capacitance Condition IR=100μA VR=10V IF=100mA IF=10mA VR=10V,f=1MHz Min 40 ----- Typ ----6 Max -30 0.55 0.34 -- Unit V μA V V pF Ordering Information (Example) Type Package Marking Minimum Package(pcs) RB425D SOT-23 D3L 3,000 Inner Box Quantity(pcs) 45...
