SD103AX Datasheet | MLS Microelectronics

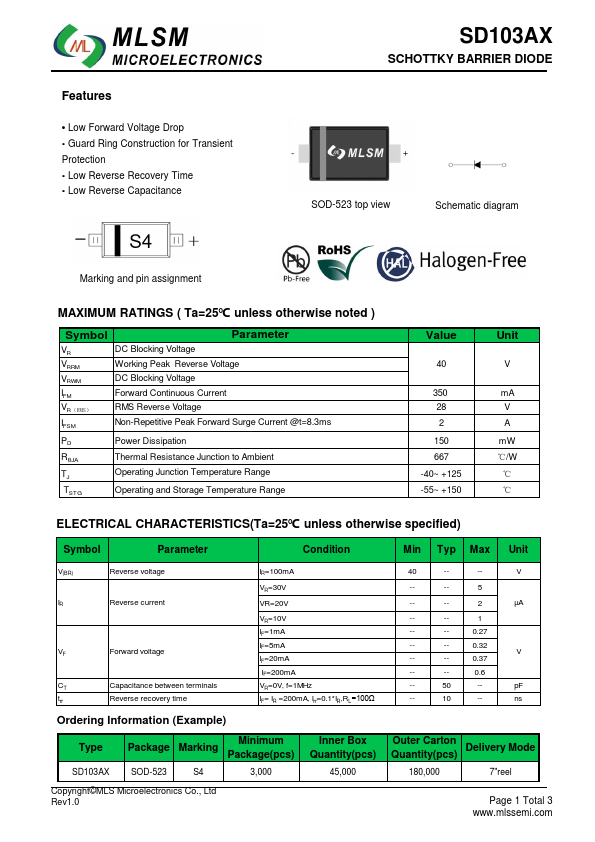

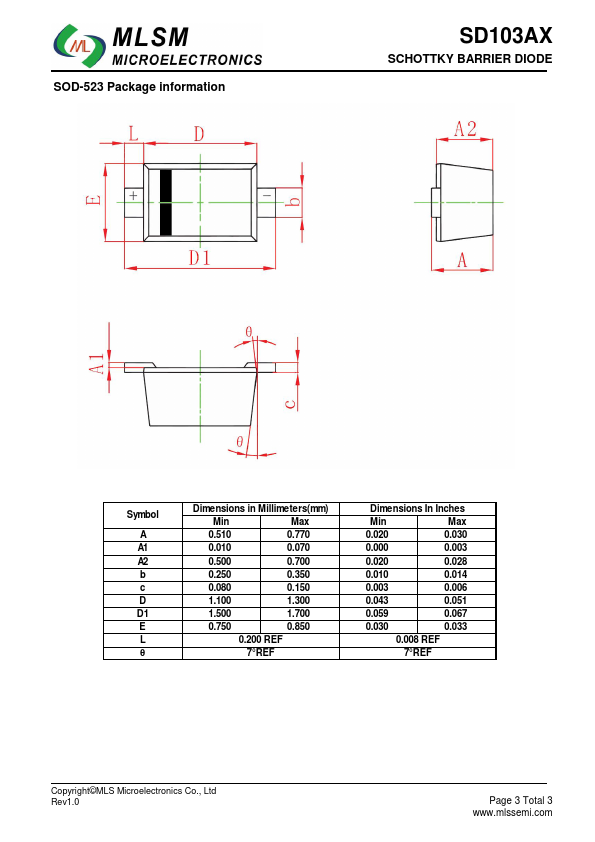

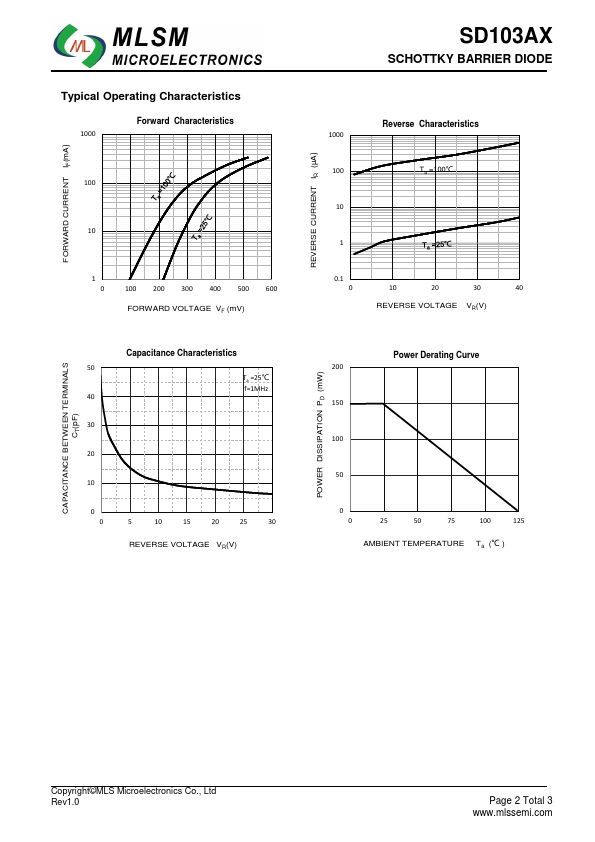

Features - Low Forward Voltage Drop - Guard Ring Construction for Transient Protection - Low Reverse Recovery Time - Low Reverse Capacitance S4 SOD-523 top view Schematic diagram Marking and pin assignment MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted ) Symbol Parameter VR VRRM VRWM DC Blocking Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current VR（RMS） RMS Reverse Voltage IFSM Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation RθJA TJ TST G Thermal Resistance Junction to Ambient Operating Junction Temperature Range Operating and Storage Temperature Range Value 350 28 2 150 667 -40~ +125 -55~ +150 Unit V m A V A m W ℃/W ℃ ℃ ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Symbol Parameter Condition Min Typ Max Unit V(BR) IR Reverse voltage Reverse current Forward voltage Capacitance between terminals...
