B0324S-1WR3 - DC/DC Converter

Download the B0324S-1WR3 datasheet PDF (B0303S-1WR3 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dc/dc converter.

Description

of reflected ripple current test method.

Features

  • Continuous short-circuit protection.
  • No-load input current as low as 8mA.
  • Operating ambient temperature range: -40℃ to +105℃ Patent Protection.
  • High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1.
  • I/O isolation test voltage: 1.5k VDC.
  • Industry standard pin-out B_S-1WR3 series are specially designed for.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B0303S-1WR3-MORNSUN.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B0324S-1WR3
Manufacturer MORNSUN
File Size 2.09 MB
Description DC/DC Converter
Datasheet download datasheet B0324S-1WR3 Datasheet

📁 Similar Datasheet

Other Datasheets by MORNSUN

Full PDF Text Transcription

Click to expand full text

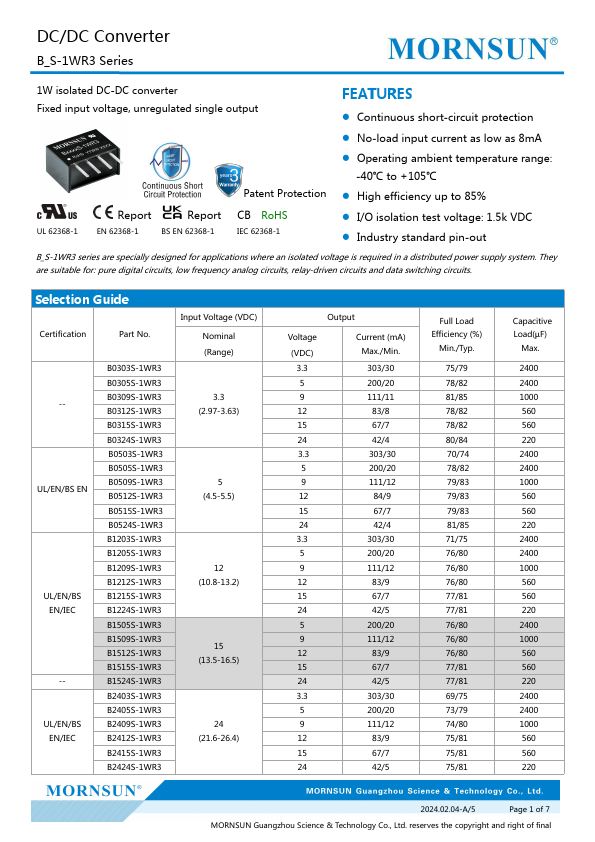

DC/DC Converter B_S-1WR3 Series 1W isolated DC-DC converter Fixed input voltage, unregulated single output FEATURES  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +105℃ Patent Protection  High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1  I/O isolation test voltage: 1.5k VDC  Industry standard pin-out B_S-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Certification Part No.
