B2403S-1WR3 - DC/DC Converter

Description

of reflected ripple current test method.

Features

Continuous short-circuit protection.
No-load input current as low as 8mA.
Operating ambient temperature range: -40℃ to +105℃ Patent Protection.
High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1.
I/O isolation test voltage: 1.5k VDC.
Industry standard pin-out B_S-1WR3 series are specially designed for.

Datasheet Details

Part number	B2403S-1WR3
Manufacturer	MORNSUN
File Size	2.09 MB
Description	DC/DC Converter
Datasheet	B2403S-1WR3 Datasheet

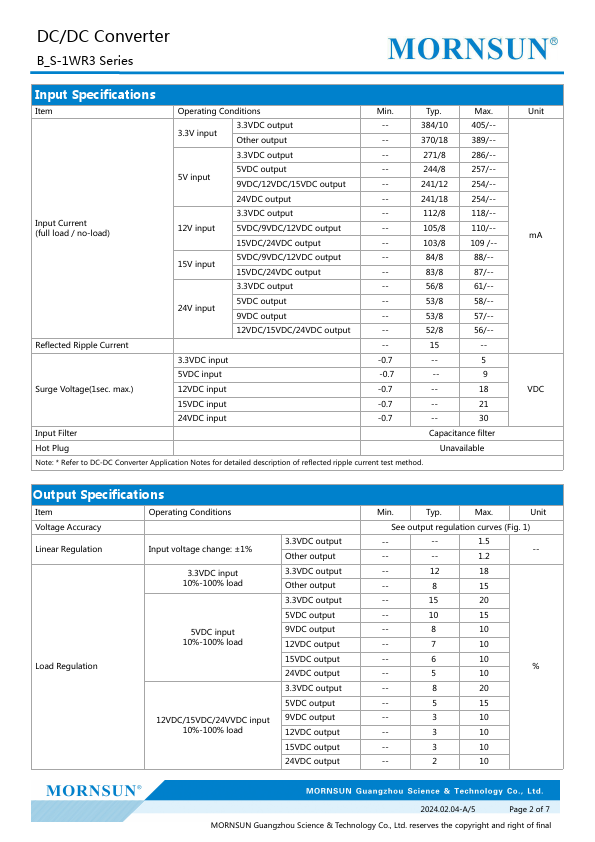

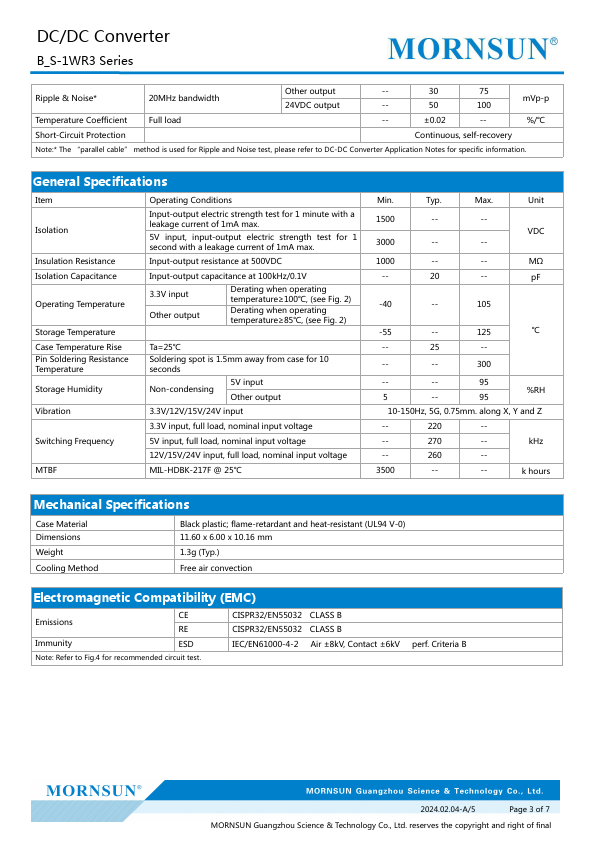

Additional preview pages of the B2403S-1WR3 datasheet.

📁 Similar Datasheet

B2403M-2WR3 - DC/DC Power Module (K-CUT)

B240 - 2 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Fuji Electric)

B240 - 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Diodes Incorporated)

B240 - Tube (Philips)

B240 - Schottky Barrier Rectifiers (AXElite)

B2405D-1W - DC/DC CONVERTER (REICU)

B2405D-2W - DC/DC CONVERTER (REICU)

B2405D-W5 - DC/DC CONVERTER (REICU)

B2405LD-1W - DC/DC CONVERTER (REICU)

B2405LM-1W - DC/DC CONVERTER (REICU)

Full PDF Text Transcription

Click to expand full text

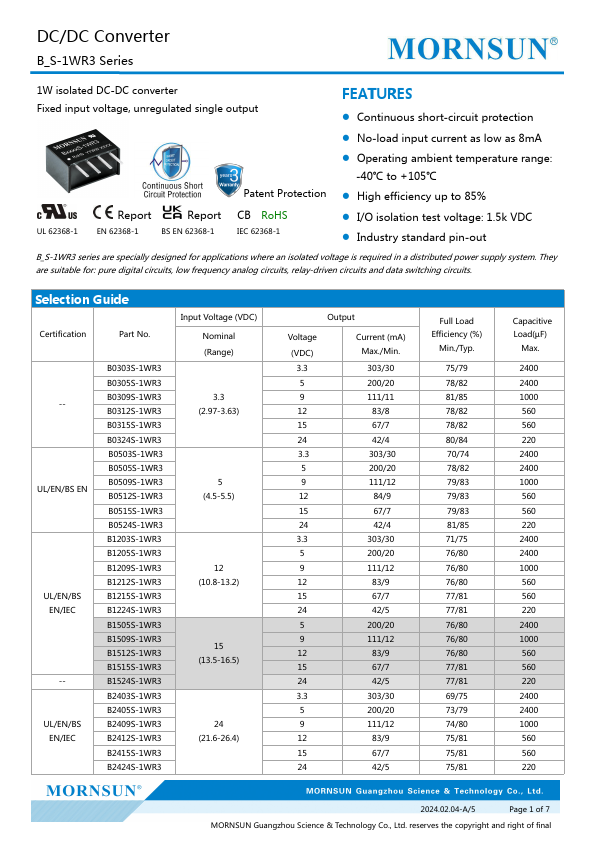

DC/DC Converter B_S-1WR3 Series 1W isolated DC-DC converter Fixed input voltage, unregulated single output FEATURES  Continuous short-circuit protection  No-load input current as low as 8mA  Operating ambient temperature range: -40℃ to +105℃ Patent Protection  High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB RoHS IEC 62368-1  I/O isolation test voltage: 1.5k VDC  Industry standard pin-out B_S-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Certification Part No.
