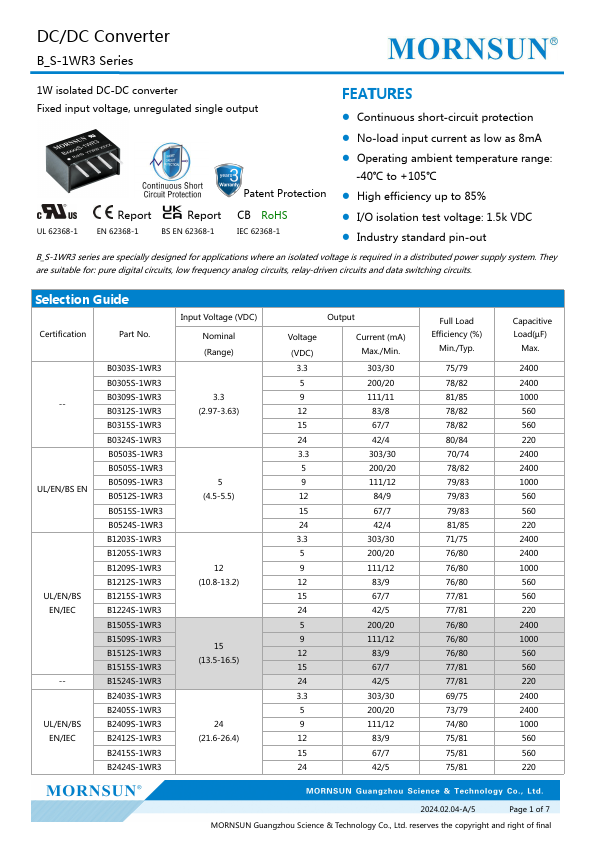

B2424S-1WR3 Datasheet | MORNSUN

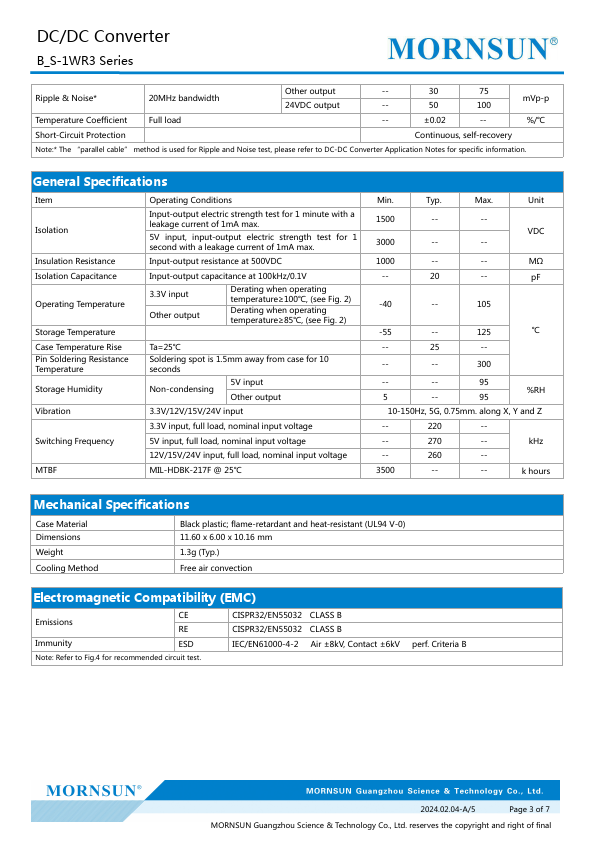

FEATURES - Continuous short-circuit protection - No-load input current as low as 8m A - Operating ambient temperature range: -40℃ to +105℃ Patent Protection - High efficiency up to 85% UL 62368-1 Report Report EN 62368-1 BS EN 62368-1 CB Ro HS IEC 62368-1 - I/O isolation test voltage: 1.5k VDC - Industry standard pin-out B_S-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits. Selection Guide Certification Part No. -- UL/EN/BS EN UL/EN/BS EN/IEC -UL/EN/BS EN/IEC B0303S-1WR3 B0305S-1WR3 B0309S-1WR3 B0312S-1WR3 B0315S-1WR3 B0324S-1WR3 B0503S-1WR3 B0505S-1WR3 B0509S-1WR3 B0512S-1WR3 B0515S-1WR3 B0524S-1WR3 B1203S-1WR3 B1205S-1WR3 B1209S-1WR3 B1212S-1WR3 B1215S-1WR3 B1224S-1WR3 B1505S-1WR3 B1509S-1WR3 B1512S-1WR3 B1515S-1WR3 B1524S-1WR3 B2403S-1WR3 B2405S-1WR3 B2409S-1WR3 B2412S-1WR3 B2415S-1WR3 B2424S-1WR3 Input Voltage (VDC) Nominal (Range) 3.3 (2.97-3.63) 5 (4.5-5.5) 12 (10.8-13.2) 15 (13.5-16.5) 24 (21.6-26.4) Output Voltage (VDC) 3.3 5 9 12 15 24 3.3 5 9 12 15 24 3.3 5 9 12 15 24 5 9 12 15 24 3.3 5 9 12 15 24 Current (m A) Max./Min. 303/30 200/20 111/11 83/8 67/7 42/4 303/30 200/20 111/12 84/9 67/7 42/4 303/30 200/20 111/12 83/9 67/7 42/5 200/20 111/12 83/9 67/7 42/5 303/30 200/20 111/12 83/9 67/7 42/5 Full Load Efficiency (%) Min./Typ. 75/79 78/82 81/85 78/82 78/82 80/84 70/74 78/82 79/83 79/83 79/83 81/85 71/75 76/80 76/80 76/80 77/81 77/81 76/80 76/80 76/80 77/81 77/81 69/75 73/79 74/80 75/81 75/81...
