MP2797 - High-Accuracy Battery Monitor and Protector

Description

The MP2797 is a robust battery management device, providing a complete analog front-end (AFE) monitoring and protection solution.

It is designed for multiple-cell series battery management systems (BMS).

The device can support I2C or SPI communication.

Features

  • Incorporates Dual ADC Architecture: o.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MP270 Low Cost Quartz Crystal CTS
MP270-E Low Cost Quartz Crystal CTS
MP270B Low Cost Quartz Crystal CTS
MP270B-E Low Cost Quartz Crystal CTS
MP2-202S Fast Recovery Diode Sanken

Other Datasheets by Monolithic Power Systems

Part Number Description
MP2790 High-Accuracy Battery Monitor and Protector
MP2796 7-Cell to 16-Cell Battery Monitor and Protector
MP2700 1A Linear Charger
MP2702 1A Linear Charger
MP2710 Li-Ion Battery Charger

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

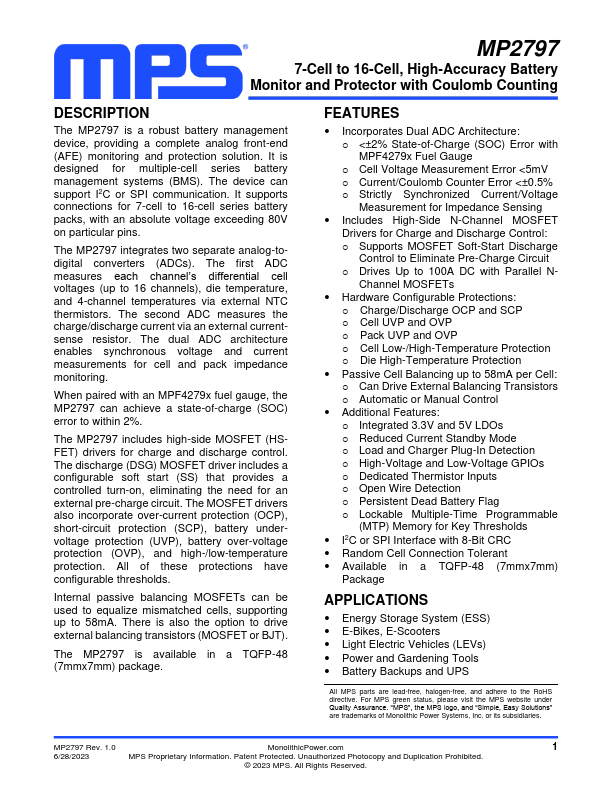

MP2797 7-Cell to 16-Cell, High-Accuracy Battery Monitor and Protector with Coulomb Counting DESCRIPTION The MP2797 is a robust battery management device, providing a complete analog front-end (AFE) monitoring and protection solution. It is designed for multiple-cell series battery management systems (BMS). The device can support I2C or SPI communication. It supports connections for 7-cell to 16-cell series battery packs, with an absolute voltage exceeding 80V on particular pins. The MP2797 integrates two separate analog-todigital converters (ADCs). The first ADC measures each channel’s differential cell voltages (up to 16 channels), die temperature, and 4-channel temperatures via external NTC thermistors.
