MP2888A - Multi-Phase PWM Controller

Datasheet Summary

Description

The MP2888A is a digital, multi-phase, pulsewidth modulation (PWM) controller with digital PWM-VID interface compatible with NVIDIA’s Open VReg specification.

Features

  • Programmable Multi-Phase up to 10 Phases.
  • PWM-VID Interface Compatible with NVIDIA Open VReg Specification.
  • PMBus/I2C Compliant (1MHz Bus Speed).
  • Pin Programmable for PMBus Address.
  • Built-In EEPROM to Store Custom Configurations.
  • Switching Frequency Range 200kHz to 5MHz.
  • Automatic Loop Compensation.
  • Fewer External Components than Conventional Analog Controller.
  • Best Transient Performance with Non- Linear Digital Control.
  • Flexible Phase Assignmen.

📥 Download Datasheet

Datasheet preview – MP2888A

Datasheet Details

Part number MP2888A
Manufacturer MPS
File Size 4.09 MB
Description Multi-Phase PWM Controller
Datasheet download datasheet MP2888A Datasheet

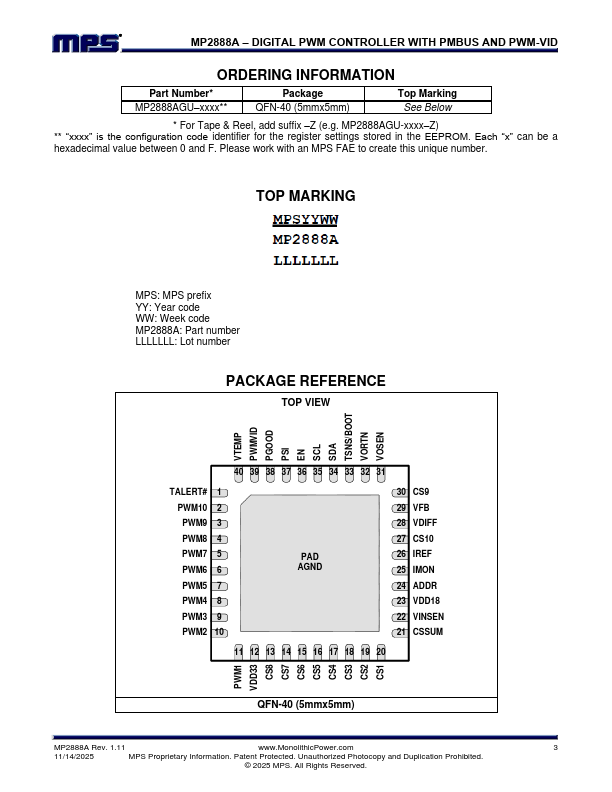

Additional preview pages of the MP2888A datasheet.

📁 Similar Datasheet

  • MP2800 - General Purpose Schottky Diodes (M-Pulse Microwave)
  • MP2801 - General Purpose Schottky Diodes (M-Pulse Microwave)
  • MP2810 - General Purpose Schottky Diodes (M-Pulse Microwave)
  • MP28100BT - MP28100BT (ETC)
  • MP2811 - General Purpose Schottky Diodes (M-Pulse Microwave)
  • MP2822K3C10 - Safety Standard Capacitor (ETC)
  • MP2823K3C30 - Safety Standard Capacitor (ETC)
  • MP2823K3D10 - Safety Standard Capacitor (ETC)
  • MP2824K3E60 - Safety Standard Capacitor (ETC)
  • MP2824K3F10 - Safety Standard Capacitor (ETC)
Other Datasheets by MPS
  • MP2888AGU - Multi-Phase PWM Controller
  • MP2884A - Multi-Phase PWM Controller
  • MP2884AGU - Multi-Phase PWM Controller
  • MP2886A - Multi-Phase PWM Controller
  • MP28114 - 600mA Low-Voltage Synchronous Step-Down Converter
  • MP28115 - 1.5MHz Synchronous Step-Down Converter
  • MP28115DQ - 1.5MHz Synchronous Step-Down Converter
  • MP28162 - Synchronous Buck-Boost Converter

Full PDF Text Transcription

Click to expand full text
The Future of Analog IC Technology DESCRIPTION The MP2888A is a digital, multi-phase, pulsewidth modulation (PWM) controller with digital PWM-VID interface compatible with NVIDIA’s Open VReg specification. The MP2888A can work with MPS’s Intelli-Phase products to complete the multi-phase voltage regulator (VR) solution with minimal external components. The MP2888A can be configured with up to 10phase operation. The MP2888A provides an on-chip EEPROM to store and restore device configurations. Device configurations and fault parameters can be easily programmed or monitored via the PMBus/I2C interface. The MP2888A can monitor and report the output current through the CS output from the Intelli-Phase products.
